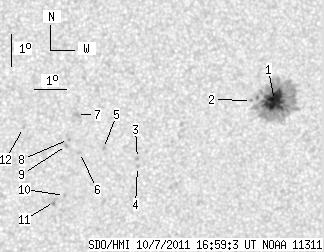

SDO HMI 2011-10-07 16:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.22 | 144.61 | 14.40 | 79.31 | -11.38 | 180.12 | 18.01 | 225.16 | 0.4290 | 364.4 | 276.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-07 16:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.22 | 126.99 | 14.40 | 69.80 | -11.21 | 180.81 | 18.70 | 226.69 | 0.4340 | 1175.1 | 424.6 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -11.18 | 180.07 | 17.96 | 225.58 | 0.4253 | 929.0 | 850.0 | |
| 0.00 | 1.84 | 0.00 | 1.00 | -12.90 | 176.54 | 14.43 | 216.63 | 0.4089 | -975.0 | -615.3 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -13.15 | 176.56 | 14.44 | 216.28 | 0.4123 | -805.0 | -583.3 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -12.55 | 175.45 | 13.33 | 215.00 | 0.3942 | -843.0 | -698.2 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -12.65 | 174.70 | 12.58 | 213.30 | 0.3889 | -777.0 | -622.4 | |
| 0.00 | 3.51 | 0.00 | 1.87 | -11.45 | 174.54 | 12.43 | 214.79 | 0.3715 | -846.0 | -689.3 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -12.23 | 174.33 | 12.22 | 213.14 | 0.3800 | -902.0 | -729.9 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -12.42 | 174.28 | 12.16 | 212.75 | 0.3821 | -883.0 | -743.2 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -14.01 | 174.29 | 12.18 | 210.61 | 0.4038 | -791.0 | -602.4 | |
| 0.00 | 2.89 | 0.00 | 1.57 | -14.20 | 173.99 | 11.88 | 209.74 | 0.4039 | -830.0 | -694.1 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -11.82 | 172.91 | 10.79 | 210.55 | 0.3622 | -944.0 | -713.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
