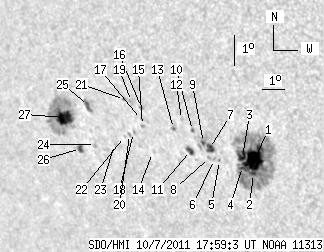

SDO HMI 2011-10-07 17:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.98 | 297.90 | 46.71 | 220.54 | -15.01 | 118.33 | -43.23 | 117.03 | 0.7434 | 236.6 | 159.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-07 17:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.43 | 171.71 | 17.94 | 121.14 | -15.25 | 121.31 | -40.25 | 118.84 | 0.7139 | 1125.2 | 372.9 | |
| 1.84 | -1.00 | 1.31 | -1.00 | -15.74 | 121.15 | -40.40 | 119.37 | 0.7182 | 736.2 | 999999 | |
| 5.00 | -1.00 | 3.55 | -1.00 | -15.22 | 120.83 | -40.73 | 118.53 | 0.7190 | 634.8 | 999999 | |
| 0.88 | -1.00 | 0.63 | -1.00 | -15.55 | 120.75 | -40.81 | 118.89 | 0.7215 | 569.4 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.82 | -15.43 | 119.82 | -41.73 | 118.22 | 0.7306 | 544.0 | 556.8 | |
| 0.00 | 1.40 | 0.00 | 1.02 | -15.41 | 119.62 | -41.94 | 118.08 | 0.7326 | 625.0 | 481.8 | |
| 5.44 | 14.12 | 3.94 | 10.24 | -15.07 | 119.49 | -42.06 | 117.59 | 0.7323 | 808.2 | 445.1 | |
| 0.00 | 1.58 | 0.00 | 1.15 | -15.36 | 119.42 | -42.14 | 117.92 | 0.7345 | 410.0 | 320.6 | |
| 1.32 | -7.00 | 0.96 | -7.00 | -14.89 | 119.29 | -42.27 | 117.26 | 0.7336 | 756.5 | 999999 | |
| 0.35 | 1.14 | 0.26 | 0.83 | -14.54 | 118.91 | -42.65 | 116.62 | 0.7359 | 501.0 | 383.4 | |
| 3.86 | 5.00 | 2.84 | 3.68 | -15.20 | 118.66 | -42.90 | 117.30 | 0.7416 | 474.8 | 262.9 | |
| 0.00 | 1.40 | 0.00 | 1.03 | -14.22 | 118.52 | -43.04 | 116.01 | 0.7385 | 572.0 | 387.3 | |
| 0.00 | 1.32 | 0.00 | 0.97 | -14.54 | 118.10 | -43.46 | 116.20 | 0.7444 | 593.0 | 430.7 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -15.40 | 116.97 | -44.59 | 116.68 | 0.7599 | -417.0 | -431.7 | |
| 0.00 | 1.67 | 0.00 | 1.26 | -14.55 | 116.75 | -44.80 | 115.55 | 0.7583 | -737.0 | -594.7 | |
| 0.00 | 1.40 | 0.00 | 1.06 | -13.97 | 116.86 | -44.70 | 114.89 | 0.7548 | -708.0 | -667.9 | |
| 0.00 | 1.05 | 0.00 | 0.79 | -14.36 | 116.76 | -44.80 | 115.32 | 0.7574 | -764.0 | -661.0 | |
| 0.00 | 1.14 | 0.00 | 0.87 | -14.81 | 116.29 | -45.27 | 115.65 | 0.7642 | -696.0 | -528.5 | |
| 0.00 | 2.98 | 0.00 | 2.26 | -13.81 | 116.46 | -45.10 | 114.50 | 0.7582 | 521.0 | 442.3 | |
| 0.00 | 1.49 | 0.00 | 1.15 | -14.89 | 116.09 | -45.47 | 115.65 | 0.7665 | -581.0 | -455.8 | |
| 0.00 | 1.40 | 0.00 | 1.07 | -13.77 | 116.16 | -45.40 | 114.32 | 0.7611 | 569.0 | 484.3 | |
| 0.00 | 0.88 | 0.00 | 0.68 | -14.98 | 115.85 | -45.71 | 115.63 | 0.7693 | -417.0 | -323.6 | |
| 0.00 | 0.53 | 0.00 | 0.41 | -15.28 | 115.31 | -46.25 | 115.75 | 0.7759 | -485.0 | -437.8 | |
| 0.00 | 1.49 | 0.00 | 1.19 | -15.35 | 114.43 | -47.13 | 115.43 | 0.7849 | -580.0 | -535.4 | |
| 0.00 | 6.84 | 0.00 | 5.39 | -14.11 | 114.46 | -47.10 | 113.96 | 0.7797 | -857.0 | -691.5 | |
| 2.81 | 4.30 | 2.27 | 3.48 | -15.54 | 113.67 | -47.89 | 115.32 | 0.7929 | -441.9 | -220.1 | |
| 16.05 | 73.31 | 13.01 | 59.58 | -14.59 | 113.21 | -48.35 | 114.00 | 0.7937 | -840.2 | -150.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
