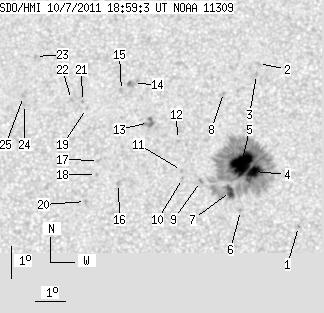

SDO HMI 2011-10-07 18:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.31 | 304.50 | 24.05 | 158.52 | 23.28 | 155.11 | -5.89 | 17.80 | 0.3079 | -577.8 | -335.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-07 18:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.68 | 21.33 | 157.45 | -3.55 | 12.61 | 0.2656 | 899.0 | 689.3 | |
| 0.00 | 1.58 | 0.00 | 0.84 | 26.44 | 155.97 | -5.04 | 12.90 | 0.3537 | -791.0 | -600.6 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 26.09 | 155.92 | -5.09 | 13.28 | 0.3483 | -949.0 | -783.1 | |
| 9.21 | 264.84 | 4.78 | 137.59 | 23.03 | 155.94 | -5.06 | 15.82 | 0.2994 | -1497.9 | -432.5 | |
| 30.61 | -4.00 | 15.91 | -4.00 | 23.27 | 155.54 | -5.47 | 16.74 | 0.3052 | -1441.8 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 21.81 | 155.57 | -5.44 | 18.29 | 0.2818 | -893.0 | -690.5 | |
| 6.49 | -4.00 | 3.36 | -4.00 | 22.40 | 155.22 | -5.79 | 18.65 | 0.2930 | -1070.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 25.50 | 154.84 | -6.16 | 16.46 | 0.3436 | -765.0 | -611.5 | |
| 0.00 | 1.58 | 0.00 | 0.82 | 22.70 | 154.23 | -6.78 | 21.15 | 0.3032 | -885.0 | -692.8 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 22.78 | 153.63 | -7.37 | 22.68 | 0.3082 | 829.0 | 559.9 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 23.03 | 153.59 | -7.42 | 22.48 | 0.3123 | 749.0 | 495.0 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 24.00 | 153.40 | -7.61 | 21.73 | 0.3282 | -542.0 | -614.3 | |
| 0.00 | 6.93 | 0.00 | 3.65 | 24.52 | 152.40 | -8.60 | 23.54 | 0.3423 | -654.0 | -712.7 | |
| 0.00 | 5.70 | 0.00 | 3.03 | 25.75 | 151.81 | -9.20 | 23.39 | 0.3642 | 898.0 | 790.9 | |
| 0.00 | 2.19 | 0.00 | 1.16 | 25.52 | 151.42 | -9.58 | 24.53 | 0.3634 | 872.0 | 734.0 | |
| 0.00 | 2.28 | 0.00 | 1.19 | 22.59 | 151.54 | -9.46 | 28.42 | 0.3204 | 886.0 | 673.2 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 23.30 | 150.83 | -10.17 | 29.01 | 0.3360 | 632.0 | 465.2 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 22.86 | 150.80 | -10.21 | 29.79 | 0.3301 | 736.0 | 564.0 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 24.93 | 150.30 | -10.71 | 27.79 | 0.3630 | 743.0 | 559.5 | |
| 0.00 | 1.67 | 0.00 | 0.87 | 22.01 | 150.50 | -10.51 | 31.94 | 0.3209 | 938.0 | 742.5 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 25.15 | 150.14 | -10.86 | 27.81 | 0.3672 | 893.0 | 712.2 | |
| 0.00 | 1.67 | 0.00 | 0.89 | 25.20 | 149.77 | -11.24 | 28.53 | 0.3709 | 892.0 | 631.8 | |
| 0.00 | 1.67 | 0.00 | 0.90 | 26.54 | 148.41 | -12.60 | 29.36 | 0.3998 | 761.0 | 522.9 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 25.01 | 148.20 | -12.81 | 31.98 | 0.3811 | 862.0 | 704.4 | |
| 0.00 | 1.49 | 0.00 | 0.80 | 25.26 | 148.14 | -12.87 | 31.71 | 0.3849 | 975.0 | 770.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
