SDO HMI 2011-10-07 19:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.65 | 296.69 | 24.23 | 154.39 | 23.36 | 155.12 | -5.34 | 16.09 | 0.3064 | -699.6 | -370.4 | |
|
previous
or next observation for the same group /

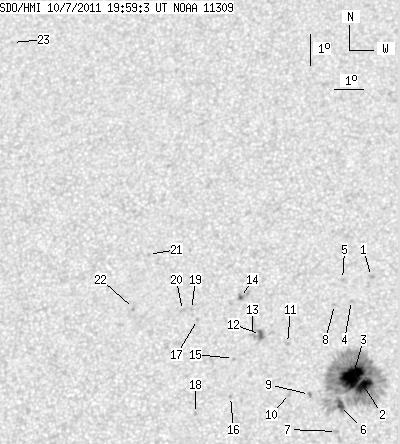

back to the solar disc SDO HMI 2011-10-07 19:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.93 | 0.00 | 1.02 | 26.44 | 156.05 | -4.40 | 11.32 | 0.3516 | -888.0 | -691.8 | |
| 10.96 | 257.04 | 5.68 | 133.43 | 23.00 | 155.91 | -4.54 | 14.28 | 0.2967 | -1465.6 | -444.5 | |
| 28.85 | -2.00 | 14.99 | -2.00 | 23.28 | 155.54 | -4.91 | 15.12 | 0.3028 | -1458.7 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 25.68 | 155.42 | -5.04 | 13.46 | 0.3415 | -858.0 | -684.1 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 26.34 | 155.09 | -5.37 | 13.79 | 0.3534 | -740.0 | -554.3 | |
| 4.56 | -2.00 | 2.36 | -2.00 | 22.37 | 155.19 | -5.27 | 17.11 | 0.2899 | -1099.5 | 999999 | |
| 0.00 | 2.19 | 0.00 | 1.13 | 21.56 | 155.09 | -5.37 | 18.35 | 0.2775 | -877.0 | -600.2 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 25.54 | 154.86 | -5.60 | 15.00 | 0.3417 | -887.0 | -662.9 | |
| 0.00 | 1.93 | 0.00 | 1.00 | 22.70 | 154.16 | -6.29 | 19.75 | 0.3005 | -874.0 | -640.7 | |
| 0.00 | 2.46 | 0.00 | 1.28 | 22.73 | 153.51 | -6.95 | 21.57 | 0.3047 | 704.0 | 558.8 | |
| 0.00 | 1.58 | 0.00 | 0.83 | 24.29 | 153.36 | -7.10 | 20.07 | 0.3296 | -858.0 | -631.6 | |
| 1.49 | 5.79 | 0.78 | 3.05 | 24.56 | 152.45 | -8.01 | 22.04 | 0.3391 | -832.1 | -622.4 | |
| 0.00 | 2.72 | 0.00 | 1.43 | 24.53 | 152.18 | -8.27 | 22.73 | 0.3402 | -565.0 | -587.6 | |
| 0.79 | 5.52 | 0.42 | 2.93 | 25.72 | 151.70 | -8.76 | 22.43 | 0.3611 | 1108.8 | 799.7 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 23.80 | 151.60 | -8.85 | 25.12 | 0.3332 | 849.0 | 614.6 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 22.61 | 151.58 | -8.87 | 26.91 | 0.3160 | 971.0 | 776.8 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 25.00 | 150.31 | -10.14 | 26.46 | 0.3599 | 845.0 | 616.3 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 22.06 | 150.47 | -9.98 | 30.60 | 0.3170 | 961.0 | 743.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 25.32 | 150.08 | -10.37 | 26.53 | 0.3660 | 874.0 | 667.8 | |
| 0.00 | 2.37 | 0.00 | 1.26 | 25.28 | 149.78 | -10.67 | 27.23 | 0.3676 | 725.0 | 690.0 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 27.03 | 148.45 | -12.00 | 27.57 | 0.4020 | 756.0 | 525.4 | |
| 0.00 | 1.84 | 0.00 | 0.99 | 25.31 | 148.12 | -12.33 | 30.60 | 0.3810 | 836.0 | 712.4 | |
| 0.00 | 1.14 | 0.00 | 0.67 | 33.85 | 142.47 | -17.98 | 28.84 | 0.5338 | 643.0 | 502.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
