SDO HMI 2011-10-07 20:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.88 | 302.11 | 43.69 | 217.58 | -15.03 | 118.34 | -41.56 | 117.96 | 0.7263 | 261.4 | 153.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-07 20:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

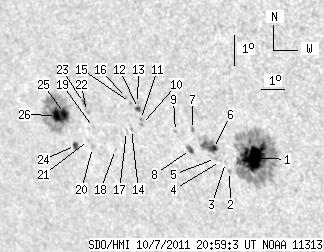

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.66 | 173.91 | 25.25 | 119.65 | -15.30 | 121.22 | -38.69 | 119.84 | 0.6975 | 1099.0 | 368.9 | |
| 0.00 | 1.40 | 0.00 | 0.99 | -15.83 | 120.13 | -39.78 | 119.85 | 0.7120 | 497.0 | 348.7 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -15.54 | 120.03 | -39.87 | 119.44 | 0.7115 | 540.0 | 515.6 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -15.53 | 119.83 | -40.07 | 119.30 | 0.7136 | 568.0 | 553.9 | |
| 0.00 | 1.14 | 0.00 | 0.81 | -15.44 | 119.65 | -40.26 | 119.09 | 0.7151 | 612.0 | 485.4 | |
| 2.81 | 15.52 | 1.98 | 10.96 | -15.12 | 119.64 | -40.26 | 118.68 | 0.7135 | 926.3 | 659.2 | |
| 0.00 | 2.19 | 0.00 | 1.56 | -14.57 | 118.91 | -41.00 | 117.56 | 0.7185 | 633.0 | 439.8 | |
| 3.16 | 4.56 | 2.26 | 3.27 | -15.23 | 118.67 | -41.23 | 118.25 | 0.7243 | 477.8 | 276.2 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -14.69 | 118.18 | -41.73 | 117.30 | 0.7269 | 655.0 | 492.2 | |
| 0.00 | 1.40 | 0.00 | 1.03 | -14.58 | 116.77 | -43.13 | 116.42 | 0.7411 | -712.0 | -607.4 | |
| 0.00 | 1.05 | 0.00 | 0.77 | -14.42 | 116.77 | -43.14 | 116.22 | 0.7405 | -742.0 | -593.6 | |
| 2.02 | 2.72 | 1.48 | 1.99 | -14.07 | 116.77 | -43.14 | 115.78 | 0.7389 | -697.8 | -467.5 | |
| 0.00 | 1.84 | 0.00 | 1.35 | -13.91 | 116.76 | -43.14 | 115.58 | 0.7382 | -596.0 | -399.1 | |
| 0.00 | 0.70 | 0.00 | 0.52 | -14.78 | 116.29 | -43.61 | 116.42 | 0.7470 | -606.0 | -499.0 | |
| 0.00 | 1.32 | 0.00 | 0.97 | -13.90 | 116.46 | -43.44 | 115.42 | 0.7413 | 439.0 | 297.5 | |
| 0.00 | 0.35 | 0.00 | 0.26 | -13.76 | 116.33 | -43.57 | 115.17 | 0.7421 | 490.0 | 478.8 | |
| 0.00 | 1.67 | 0.00 | 1.24 | -14.86 | 116.06 | -43.84 | 116.40 | 0.7498 | -693.0 | -382.8 | |
| 0.00 | 0.96 | 0.00 | 0.73 | -15.49 | 115.41 | -44.49 | 116.85 | 0.7592 | -579.0 | -466.2 | |
| 0.00 | 1.14 | 0.00 | 0.87 | -14.85 | 114.62 | -45.28 | 115.68 | 0.7645 | -678.0 | -570.0 | |
| 0.00 | 1.58 | 0.00 | 1.22 | -15.51 | 114.39 | -45.51 | 116.37 | 0.7696 | -668.0 | -539.2 | |
| 0.00 | 0.79 | 0.00 | 0.61 | -15.29 | 114.27 | -45.63 | 116.06 | 0.7698 | -566.0 | -512.0 | |
| 0.00 | 2.10 | 0.00 | 1.61 | -14.35 | 114.44 | -45.46 | 115.00 | 0.7642 | -711.0 | -536.0 | |
| 0.00 | 2.89 | 0.00 | 2.21 | -14.07 | 114.38 | -45.52 | 114.63 | 0.7636 | -818.0 | -718.3 | |
| 3.07 | 3.68 | 2.41 | 2.89 | -15.51 | 113.63 | -46.27 | 116.01 | 0.7771 | -508.9 | -347.4 | |
| 6.14 | 76.74 | 4.79 | 60.33 | -14.50 | 113.42 | -46.48 | 114.71 | 0.7751 | -1000.2 | -199.9 | |
| 7.02 | -25.00 | 5.52 | -25.00 | -14.60 | 113.03 | -46.87 | 114.65 | 0.7794 | -776.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
