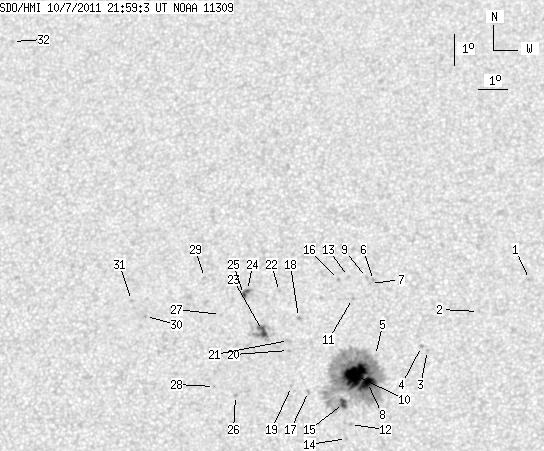

SDO HMI 2011-10-07 21:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.46 | 307.46 | 28.31 | 159.81 | 23.43 | 155.20 | -4.15 | 12.63 | 0.3027 | -729.9 | -392.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-07 21:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.84 | 0.00 | 0.97 | 26.30 | 161.24 | 1.89 | 355.05 | 0.3434 | -681.0 | -330.9 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 25.29 | 159.53 | 0.18 | 359.50 | 0.3254 | -689.0 | -501.7 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 24.05 | 157.86 | -1.49 | 4.48 | 0.3058 | -816.0 | -711.0 | |
| 0.00 | 1.58 | 0.00 | 0.82 | 24.18 | 157.66 | -1.69 | 5.04 | 0.3082 | -778.0 | -564.6 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 23.89 | 156.15 | -3.20 | 9.62 | 0.3065 | -3.0 | -0.8 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 26.26 | 156.02 | -3.33 | 8.70 | 0.3456 | -923.0 | -824.0 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 26.16 | 155.93 | -3.42 | 9.00 | 0.3443 | -802.0 | -577.2 | |
| 9.91 | 255.05 | 5.13 | 132.25 | 23.04 | 155.91 | -3.44 | 10.89 | 0.2933 | -1424.2 | -420.2 | |
| 0.00 | 1.58 | 0.00 | 0.83 | 26.35 | 155.79 | -3.56 | 9.26 | 0.3477 | -898.0 | -624.9 | |
| 31.22 | -8.00 | 16.20 | -8.00 | 23.26 | 155.52 | -3.83 | 11.94 | 0.2982 | -1416.2 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 25.68 | 155.34 | -4.01 | 10.79 | 0.3381 | -835.0 | -710.0 | |
| 0.00 | 1.49 | 0.00 | 0.77 | 21.73 | 155.40 | -3.95 | 13.59 | 0.2737 | -964.0 | -746.5 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 26.38 | 155.18 | -4.17 | 10.77 | 0.3499 | -661.0 | -562.2 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 21.29 | 155.28 | -4.07 | 14.40 | 0.2671 | -870.0 | -665.9 | |
| 4.47 | -8.00 | 2.31 | -8.00 | 22.38 | 155.15 | -4.20 | 13.79 | 0.2853 | -1114.2 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 26.28 | 154.85 | -4.50 | 11.66 | 0.3494 | -822.0 | -661.6 | |
| 0.00 | 1.93 | 0.00 | 1.00 | 22.74 | 154.00 | -5.35 | 16.95 | 0.2962 | -806.0 | -587.9 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 25.07 | 153.57 | -5.78 | 15.88 | 0.3350 | -824.0 | -744.8 | |
| 0.00 | 1.49 | 0.00 | 0.77 | 22.90 | 153.44 | -5.91 | 18.43 | 0.3014 | 772.0 | 562.1 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 24.02 | 153.29 | -6.06 | 17.63 | 0.3199 | -827.0 | -644.3 | |
| 0.00 | 2.98 | 0.00 | 1.56 | 24.34 | 153.27 | -6.08 | 17.35 | 0.3249 | -759.0 | -585.0 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 25.88 | 152.90 | -6.46 | 16.83 | 0.3509 | 917.0 | 694.3 | |
| 6.05 | 15.26 | 3.18 | 8.01 | 24.64 | 152.40 | -6.95 | 19.31 | 0.3342 | -775.5 | -557.7 | |
| 1.32 | 5.00 | 0.70 | 2.65 | 25.90 | 151.82 | -7.53 | 19.39 | 0.3566 | 887.1 | 870.8 | |
| 1.49 | -24.00 | 0.79 | -24.00 | 25.77 | 151.69 | -7.66 | 19.82 | 0.3553 | 968.5 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 22.59 | 151.62 | -7.73 | 23.91 | 0.3076 | 926.0 | 660.4 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 25.13 | 150.97 | -8.38 | 22.27 | 0.3499 | 731.0 | 714.5 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 22.86 | 150.92 | -8.43 | 25.39 | 0.3165 | 751.0 | 532.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 26.29 | 150.34 | -9.01 | 22.33 | 0.3710 | 796.0 | 569.2 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 25.02 | 148.46 | -10.89 | 28.05 | 0.3657 | 839.0 | 653.4 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 25.52 | 147.94 | -11.41 | 28.43 | 0.3765 | 789.0 | 534.5 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 33.85 | 142.50 | -16.86 | 27.37 | 0.5259 | 698.0 | 544.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
