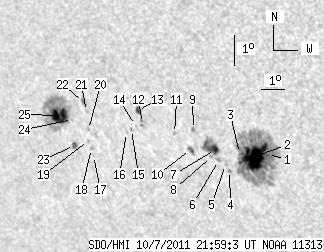

SDO HMI 2011-10-07 21:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.54 | 298.01 | 44.63 | 211.82 | -15.04 | 118.60 | -40.75 | 118.43 | 0.7177 | 247.3 | 175.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-07 21:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.26 | 177.61 | 0.18 | 121.22 | -15.15 | 121.76 | -37.59 | 120.36 | 0.6847 | 913.7 | 376.6 | |
| 35.00 | -1.00 | 23.91 | -1.00 | -15.26 | 121.23 | -38.13 | 120.15 | 0.6911 | 1115.8 | 999999 | |
| 0.61 | -1.00 | 0.42 | -1.00 | -15.20 | 120.64 | -38.71 | 119.71 | 0.6972 | 423.4 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.28 | -15.79 | 120.11 | -39.24 | 120.13 | 0.7062 | 549.0 | 398.0 | |
| 0.00 | 1.40 | 0.00 | 0.98 | -15.60 | 119.99 | -39.36 | 119.82 | 0.7064 | 588.0 | 583.0 | |
| 0.00 | 2.28 | 0.00 | 1.59 | -15.49 | 119.73 | -39.62 | 119.53 | 0.7086 | 556.0 | 560.2 | |
| 3.51 | 17.10 | 2.45 | 11.97 | -15.14 | 119.69 | -39.66 | 119.06 | 0.7071 | 935.5 | 659.2 | |
| 0.00 | 1.23 | 0.00 | 0.86 | -15.38 | 119.47 | -39.88 | 119.23 | 0.7107 | 392.0 | 342.9 | |
| 0.00 | 1.84 | 0.00 | 1.30 | -14.56 | 118.93 | -40.42 | 117.87 | 0.7123 | 495.0 | 445.1 | |
| 2.81 | 4.30 | 1.99 | 3.05 | -15.22 | 118.65 | -40.70 | 118.55 | 0.7186 | 476.6 | 459.0 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -14.75 | 118.10 | -41.25 | 117.64 | 0.7221 | 652.0 | 519.6 | |
| 0.00 | 3.68 | 0.00 | 2.68 | -14.53 | 116.82 | -42.53 | 116.67 | 0.7346 | -602.0 | -578.5 | |
| 2.28 | 3.51 | 1.66 | 2.55 | -14.13 | 116.70 | -42.65 | 116.10 | 0.7339 | -714.9 | -553.4 | |
| 0.00 | 0.70 | 0.00 | 0.51 | -14.62 | 116.50 | -42.85 | 116.62 | 0.7384 | -550.0 | -384.6 | |
| 0.00 | 0.96 | 0.00 | 0.71 | -14.76 | 116.30 | -43.05 | 116.69 | 0.7412 | -423.0 | -482.6 | |
| 0.00 | 1.23 | 0.00 | 0.91 | -14.88 | 116.06 | -43.30 | 116.71 | 0.7442 | -580.0 | -418.1 | |
| 0.00 | 0.96 | 0.00 | 0.74 | -15.75 | 114.39 | -44.96 | 116.93 | 0.7651 | -481.0 | -403.5 | |
| 0.00 | 1.84 | 0.00 | 1.41 | -15.53 | 114.36 | -44.99 | 116.65 | 0.7644 | -587.0 | -529.5 | |
| 0.00 | 1.14 | 0.00 | 0.87 | -15.28 | 114.30 | -45.05 | 116.32 | 0.7640 | -551.0 | -501.2 | |
| 0.00 | 0.96 | 0.00 | 0.73 | -14.92 | 114.40 | -44.95 | 115.93 | 0.7614 | -683.0 | -532.9 | |
| 0.00 | 1.23 | 0.00 | 0.93 | -14.34 | 114.46 | -44.89 | 115.25 | 0.7583 | -714.0 | -679.9 | |
| 0.00 | 2.72 | 0.00 | 2.06 | -14.06 | 114.40 | -44.95 | 114.88 | 0.7577 | -799.0 | -674.0 | |
| 2.72 | 3.33 | 2.11 | 2.58 | -15.49 | 113.62 | -45.73 | 116.25 | 0.7717 | -527.8 | -452.6 | |
| 0.00 | 0.53 | 0.00 | 0.40 | -14.65 | 113.76 | -45.59 | 115.30 | 0.7667 | -400.0 | -419.2 | |
| 15.35 | 66.57 | 11.91 | 51.74 | -14.57 | 113.20 | -46.15 | 114.94 | 0.7720 | -875.4 | -248.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
