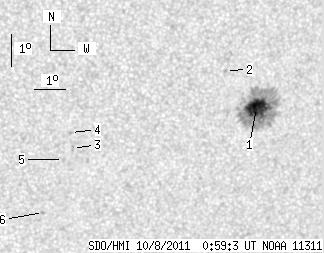

SDO HMI 2011-10-08 00:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.30 | 137.41 | 13.76 | 77.72 | -11.24 | 180.54 | 22.84 | 232.26 | 0.4834 | 692.1 | 343.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-08 00:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.30 | 129.15 | 13.76 | 73.19 | -11.18 | 180.84 | 23.14 | 232.78 | 0.4862 | 1109.1 | 401.6 | |
| 0.00 | 1.67 | 0.00 | 0.93 | -9.97 | 179.72 | 22.03 | 233.48 | 0.4615 | 811.0 | 524.3 | |
| 0.00 | 2.11 | 0.00 | 1.15 | -12.23 | 174.92 | 17.22 | 222.64 | 0.4290 | -708.0 | -634.1 | |
| 0.00 | 1.49 | 0.00 | 0.81 | -11.72 | 174.82 | 17.12 | 223.30 | 0.4221 | -828.0 | -731.0 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -12.57 | 174.65 | 16.96 | 221.65 | 0.4301 | -765.0 | -637.6 | |
| 0.00 | 1.67 | 0.00 | 0.92 | -14.24 | 174.13 | 16.43 | 218.26 | 0.4447 | -787.0 | -637.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
