SDO HMI 2011-10-08 01:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.50 | 130.05 | 12.23 | 73.91 | -11.20 | 180.66 | 23.51 | 233.14 | 0.4911 | 845.4 | 397.4 | |
|
previous
or next observation for the same group /

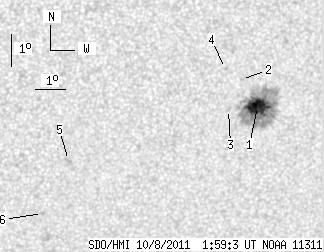

back to the solar disc SDO HMI 2011-10-08 01:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.50 | 122.41 | 12.23 | 69.66 | -11.17 | 180.86 | 23.71 | 233.46 | 0.4930 | 1120.8 | 426.2 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -10.30 | 180.26 | 23.11 | 234.23 | 0.4779 | 704.0 | 521.5 | |
| 0.00 | 1.67 | 0.00 | 0.94 | -11.23 | 179.90 | 22.75 | 232.23 | 0.4819 | 767.0 | 542.9 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -9.93 | 179.70 | 22.55 | 234.20 | 0.4677 | 540.0 | 455.3 | |
| 0.00 | 2.46 | 0.00 | 1.35 | -12.63 | 174.79 | 17.64 | 222.69 | 0.4379 | -261.0 | -552.5 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -14.29 | 174.07 | 16.92 | 219.00 | 0.4500 | -891.0 | -592.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
