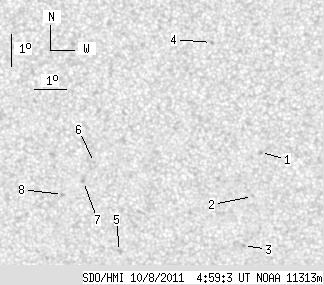

SDO HMI 2011-10-08 04:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.45 | 0.00 | 5.60 | -13.39 | 145.55 | -9.95 | 153.64 | 0.3789 | 210.0 | 210.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-08 04:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.67 | 0.00 | 0.88 | -12.32 | 148.60 | -6.90 | 159.82 | 0.3419 | 777.0 | 584.9 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -13.72 | 148.31 | -7.19 | 160.46 | 0.3650 | 912.0 | 646.6 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -15.30 | 147.98 | -7.52 | 161.06 | 0.3909 | 748.0 | 527.6 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -8.89 | 147.18 | -8.32 | 151.37 | 0.2998 | 856.0 | 662.4 | |
| 0.00 | 2.11 | 0.00 | 1.15 | -15.57 | 144.06 | -11.44 | 152.76 | 0.4194 | 767.0 | 649.8 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -12.73 | 143.42 | -12.08 | 147.84 | 0.3852 | -848.0 | -695.6 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -13.35 | 143.04 | -12.46 | 147.90 | 0.3968 | -870.0 | -786.5 | |
| 0.00 | 1.58 | 0.00 | 0.86 | -13.78 | 142.35 | -13.15 | 147.10 | 0.4085 | -662.0 | -538.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
