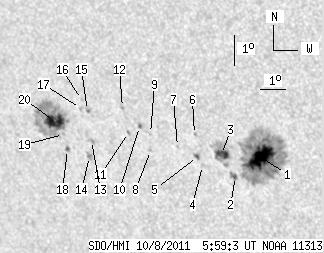

SDO HMI 2011-10-08 05:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.12 | 326.93 | 43.65 | 218.24 | -14.95 | 118.47 | -36.48 | 120.96 | 0.6707 | 233.2 | 184.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-08 05:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.68 | 186.86 | 20.40 | 120.20 | -15.12 | 121.23 | -33.73 | 122.99 | 0.6414 | 1174.8 | 398.2 | |
| 1.67 | 4.04 | 1.09 | 2.65 | -15.80 | 120.15 | -34.80 | 123.10 | 0.6579 | 551.4 | 519.8 | |
| 8.07 | 26.51 | 5.30 | 17.38 | -15.12 | 119.75 | -35.20 | 121.91 | 0.6579 | 841.9 | 440.7 | |
| 0.00 | 1.58 | 0.00 | 1.05 | -15.52 | 118.95 | -36.01 | 121.87 | 0.6694 | 682.0 | 470.2 | |
| 1.67 | 2.72 | 1.11 | 1.81 | -15.24 | 118.81 | -36.15 | 121.41 | 0.6691 | 575.9 | 453.6 | |
| 0.00 | 1.05 | 0.00 | 0.70 | -14.54 | 118.83 | -36.12 | 120.49 | 0.6645 | 657.0 | 523.7 | |
| 0.00 | 1.14 | 0.00 | 0.76 | -14.97 | 118.09 | -36.87 | 120.57 | 0.6754 | 609.0 | 450.6 | |
| 0.00 | 1.49 | 0.00 | 1.02 | -15.18 | 116.99 | -37.97 | 120.12 | 0.6887 | -608.0 | -509.3 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -14.63 | 117.10 | -37.85 | 119.47 | 0.6843 | -486.0 | -464.3 | |
| 1.23 | 1.76 | 0.84 | 1.19 | -14.43 | 116.71 | -38.24 | 118.97 | 0.6875 | -688.4 | -612.2 | |
| 0.00 | 1.93 | 0.00 | 1.32 | -14.66 | 116.23 | -38.73 | 118.96 | 0.6941 | -596.0 | -502.3 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -13.87 | 116.15 | -38.80 | 117.89 | 0.6906 | 601.0 | 435.1 | |
| 0.00 | 1.93 | 0.00 | 1.36 | -15.03 | 114.65 | -40.30 | 118.50 | 0.7132 | -784.0 | -678.0 | |
| 0.00 | 3.51 | 0.00 | 2.49 | -15.56 | 114.45 | -40.51 | 119.05 | 0.7181 | -615.0 | -491.5 | |
| 0.35 | 2.55 | 0.25 | 1.78 | -14.07 | 114.70 | -40.25 | 117.30 | 0.7077 | -835.2 | -668.9 | |
| 0.00 | 1.05 | 0.00 | 0.74 | -13.73 | 114.53 | -40.42 | 116.77 | 0.7078 | -691.0 | -535.3 | |
| 0.00 | 1.40 | 0.00 | 0.99 | -14.03 | 114.43 | -40.53 | 117.09 | 0.7105 | -705.0 | -636.6 | |
| 1.58 | 2.63 | 1.13 | 1.89 | -15.40 | 113.58 | -41.38 | 118.36 | 0.7265 | -486.2 | -364.0 | |
| 0.00 | 1.14 | 0.00 | 0.82 | -14.92 | 113.53 | -41.43 | 117.73 | 0.7247 | -211.0 | -193.4 | |
| 18.87 | 82.06 | 13.53 | 59.01 | -14.53 | 113.25 | -41.71 | 117.08 | 0.7257 | -897.0 | -202.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
