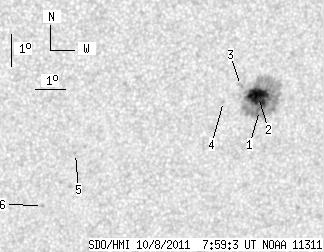

SDO HMI 2011-10-08 07:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.22 | 122.43 | 14.16 | 71.59 | -11.24 | 180.73 | 26.87 | 236.74 | 0.5322 | 810.1 | 318.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-08 07:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 116.99 | 0.26 | 68.48 | -11.63 | 180.94 | 27.08 | 236.36 | 0.5376 | 358.8 | 327.7 | |
| 23.78 | -1.00 | 13.90 | -1.00 | -11.18 | 180.86 | 27.00 | 236.99 | 0.5332 | 1103.1 | 999999 | |
| 0.00 | 2.11 | 0.00 | 1.22 | -10.81 | 180.20 | 26.34 | 236.95 | 0.5221 | 895.0 | 837.3 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -11.28 | 179.67 | 25.81 | 235.64 | 0.5193 | 622.0 | 475.0 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -12.70 | 174.86 | 21.00 | 227.61 | 0.4752 | -935.0 | -744.0 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -14.32 | 173.92 | 20.06 | 223.82 | 0.4819 | -846.0 | -618.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
