SDO HMI 2011-10-08 08:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.37 | 569.25 | 59.01 | 341.74 | 23.11 | 122.17 | -31.14 | 57.47 | 0.5662 | -1182.1 | -348.1 | |
|
previous
or next observation for the same group /

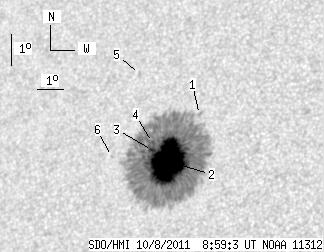

back to the solar disc SDO HMI 2011-10-08 08:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.11 | 0.00 | 1.26 | 24.61 | 122.99 | -30.32 | 54.51 | 0.5659 | -192.0 | -190.2 | |
| 94.60 | 563.63 | 56.73 | 338.31 | 23.08 | 122.21 | -31.10 | 57.50 | 0.5656 | -1245.4 | -348.3 | |
| 2.37 | -2.00 | 1.43 | -2.00 | 23.39 | 121.52 | -31.80 | 57.46 | 0.5758 | -677.2 | 999999 | |
| 1.40 | -2.00 | 0.85 | -2.00 | 23.64 | 121.45 | -31.86 | 57.11 | 0.5781 | -391.3 | 999999 | |
| 0.00 | 2.19 | 0.00 | 1.36 | 25.74 | 120.33 | -32.99 | 54.62 | 0.6038 | -641.0 | -474.3 | |
| 0.00 | 1.32 | 0.00 | 0.81 | 23.12 | 120.01 | -33.31 | 58.84 | 0.5924 | -518.0 | -302.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
