SDO HMI 2011-10-08 11:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.82 | 121.66 | 14.82 | 72.62 | -11.26 | 180.73 | 29.06 | 238.77 | 0.5592 | 740.2 | 304.0 | |
|
previous
or next observation for the same group /

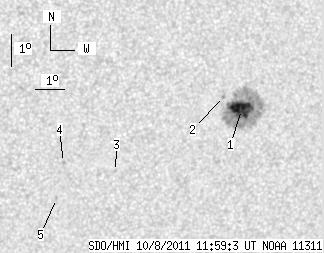

back to the solar disc SDO HMI 2011-10-08 11:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.82 | 116.57 | 14.82 | 69.67 | -11.22 | 180.88 | 29.21 | 238.99 | 0.5607 | 1025.9 | 325.3 | |
| 0.00 | 1.75 | 0.00 | 1.04 | -10.77 | 180.21 | 28.53 | 239.10 | 0.5491 | 951.0 | 834.0 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -12.95 | 176.73 | 25.06 | 232.21 | 0.5244 | -635.0 | -432.1 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -12.59 | 174.94 | 23.27 | 230.72 | 0.5001 | -785.0 | -663.8 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -13.72 | 174.82 | 23.15 | 228.81 | 0.5095 | -805.0 | -693.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
