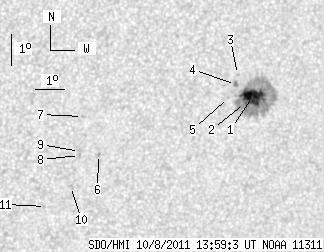

SDO HMI 2011-10-08 13:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.91 | 121.54 | 12.01 | 73.27 | -11.28 | 180.46 | 29.89 | 239.43 | 0.5697 | 531.6 | 278.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-08 13:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.47 | 109.87 | 11.75 | 66.44 | -11.19 | 180.83 | 30.26 | 239.93 | 0.5734 | 1059.1 | 320.0 | |
| 0.44 | -1.00 | 0.26 | -1.00 | -11.39 | 180.57 | 30.00 | 239.40 | 0.5716 | 839.2 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.79 | -10.46 | 180.22 | 29.65 | 240.55 | 0.5608 | 678.0 | 624.9 | |
| 0.00 | 2.37 | 0.00 | 1.42 | -10.78 | 180.19 | 29.61 | 240.03 | 0.5625 | 987.0 | 825.7 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -11.17 | 179.98 | 29.41 | 239.25 | 0.5628 | 662.0 | 535.0 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -12.74 | 175.67 | 25.10 | 232.59 | 0.5230 | -663.0 | -604.1 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -11.51 | 175.01 | 24.44 | 233.81 | 0.5043 | -755.0 | -663.4 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -12.74 | 175.03 | 24.46 | 231.87 | 0.5154 | -656.0 | -462.5 | |
| 0.00 | 2.02 | 0.00 | 1.16 | -12.61 | 175.02 | 24.44 | 232.06 | 0.5141 | -734.0 | -557.7 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -13.71 | 174.83 | 24.26 | 230.15 | 0.5220 | -817.0 | -605.0 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -14.31 | 174.05 | 23.48 | 228.33 | 0.5189 | -504.0 | -446.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
