SDO HMI 2011-10-08 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.51 | 0.00 | 5.55 | -13.77 | 147.08 | -1.28 | 176.61 | 0.3499 | 166.2 | 261.8 | |
|
previous
or next observation for the same group /

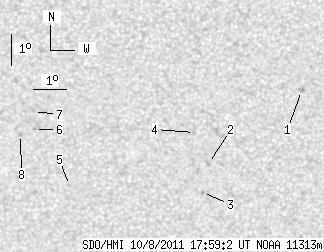

back to the solar disc SDO HMI 2011-10-08 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 1.33 | -12.34 | 151.27 | 2.90 | 188.78 | 0.3251 | 767.0 | 670.7 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -14.65 | 148.42 | 0.05 | 180.13 | 0.3596 | 735.0 | 695.1 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -15.59 | 148.23 | -0.14 | 179.65 | 0.3748 | 880.0 | 648.5 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -13.66 | 147.98 | -0.38 | 178.91 | 0.3434 | 786.0 | 641.1 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -15.38 | 144.10 | -4.27 | 169.01 | 0.3781 | 643.0 | 538.9 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -13.60 | 143.05 | -5.32 | 165.17 | 0.3535 | -779.0 | -590.5 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -13.02 | 143.03 | -5.34 | 164.69 | 0.3445 | -900.0 | -693.0 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -13.76 | 142.61 | -5.75 | 164.14 | 0.3580 | -802.0 | -678.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
