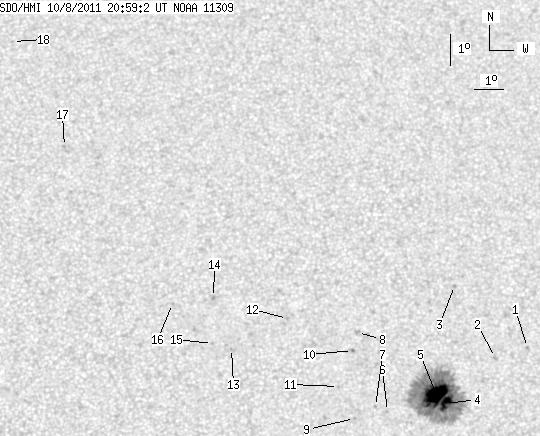

SDO HMI 2011-10-08 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.09 | 234.09 | 17.84 | 122.65 | 23.48 | 154.89 | 8.18 | 336.08 | 0.3264 | -674.2 | -410.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-08 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.61 | 24.75 | 158.31 | 11.60 | 330.13 | 0.3683 | -733.0 | -542.6 | |
| 0.00 | 2.45 | 0.00 | 1.30 | 24.45 | 157.21 | 10.50 | 332.05 | 0.3556 | -780.0 | -647.7 | |
| 0.00 | 1.49 | 0.00 | 0.80 | 26.76 | 156.02 | 9.32 | 337.59 | 0.3807 | -969.0 | -657.2 | |
| 7.80 | 213.34 | 4.08 | 111.64 | 23.04 | 155.45 | 8.74 | 334.16 | 0.3222 | -1326.0 | -461.6 | |
| 26.29 | -4.00 | 13.76 | -4.00 | 23.32 | 155.17 | 8.46 | 335.28 | 0.3245 | -1468.6 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 22.82 | 153.53 | 6.82 | 338.95 | 0.3062 | -546.0 | -395.5 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 22.98 | 153.15 | 6.44 | 340.23 | 0.3065 | 777.0 | 518.8 | |
| 0.00 | 2.10 | 0.00 | 1.11 | 25.31 | 152.67 | 5.96 | 343.93 | 0.3406 | -766.0 | -601.8 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 22.61 | 152.45 | 5.74 | 341.82 | 0.2970 | 890.0 | 681.3 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 24.74 | 152.47 | 5.76 | 343.92 | 0.3308 | -956.0 | -828.3 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 23.62 | 151.96 | 5.25 | 344.25 | 0.3106 | 702.0 | 535.1 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 25.77 | 150.36 | 3.65 | 350.25 | 0.3395 | 782.0 | 532.2 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 24.83 | 148.48 | 1.77 | 354.96 | 0.3201 | 790.0 | 620.0 | |
| 0.00 | 1.84 | 0.00 | 0.97 | 26.45 | 147.90 | 1.19 | 356.90 | 0.3461 | 730.0 | 588.1 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 24.99 | 147.85 | 1.14 | 356.77 | 0.3220 | 802.0 | 622.9 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 26.26 | 146.53 | -0.18 | 0.47 | 0.3425 | 732.0 | 557.4 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 31.34 | 142.73 | -3.98 | 7.97 | 0.4290 | 688.0 | 568.3 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 34.85 | 140.66 | -6.05 | 10.25 | 0.4877 | 661.0 | 478.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
