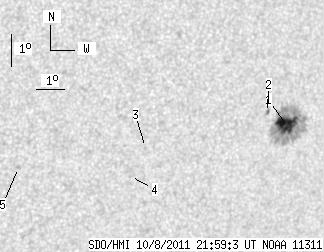

SDO HMI 2011-10-08 21:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.23 | 102.72 | 14.75 | 65.09 | -11.22 | 180.58 | 34.42 | 242.96 | 0.6246 | 681.6 | 300.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-08 21:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.23 | 96.16 | 14.75 | 61.11 | -11.20 | 180.84 | 34.68 | 243.20 | 0.6276 | 957.1 | 325.6 | |
| 0.00 | 2.89 | 0.00 | 1.81 | -10.78 | 180.08 | 33.92 | 243.30 | 0.6159 | 851.0 | 709.5 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -11.62 | 175.79 | 29.64 | 238.75 | 0.5688 | -670.0 | -477.5 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -12.50 | 175.37 | 29.22 | 237.03 | 0.5702 | -682.0 | -494.3 | |
| 0.00 | 1.75 | 0.00 | 1.01 | -12.02 | 171.45 | 25.29 | 233.94 | 0.5191 | -837.0 | -702.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
