SDO HMI 2011-10-08 21:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.20 | 0.00 | 10.15 | -13.91 | 145.06 | -1.09 | 176.89 | 0.3507 | 126.1 | -70.4 | |
|
previous
or next observation for the same group /

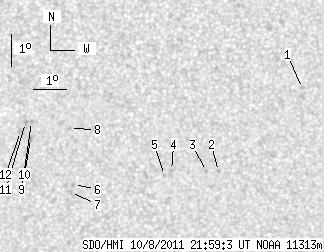

back to the solar disc SDO HMI 2011-10-08 21:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.55 | -12.04 | 151.48 | 5.32 | 196.08 | 0.3289 | 826.0 | 559.3 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -14.66 | 148.93 | 2.77 | 187.45 | 0.3627 | 825.0 | 561.6 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.66 | 148.56 | 2.40 | 186.46 | 0.3619 | 842.0 | 688.8 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -14.62 | 147.47 | 1.32 | 183.56 | 0.3598 | 716.0 | 611.1 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -14.78 | 147.26 | 1.10 | 182.95 | 0.3622 | 685.0 | 544.1 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -15.07 | 144.44 | -1.72 | 175.46 | 0.3676 | 820.0 | 686.7 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -15.33 | 144.34 | -1.81 | 175.27 | 0.3719 | 678.0 | 568.3 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -13.28 | 144.33 | -1.83 | 174.71 | 0.3385 | -594.0 | -448.1 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -13.07 | 143.16 | -3.00 | 171.28 | 0.3373 | -957.0 | -674.9 | |
| 0.00 | 2.98 | 0.00 | 1.57 | -13.61 | 143.12 | -3.03 | 171.42 | 0.3462 | -813.0 | -687.0 | |
| 0.00 | 1.93 | 0.00 | 1.01 | -13.10 | 142.98 | -3.18 | 170.77 | 0.3383 | -939.0 | -788.0 | |
| 0.00 | 2.89 | 0.00 | 1.52 | -13.39 | 142.82 | -3.34 | 170.46 | 0.3434 | -576.0 | -636.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
