SDO HMI 2011-10-08 22:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.06 | 318.22 | 40.22 | 190.98 | -14.78 | 118.36 | -27.24 | 128.48 | 0.5658 | 220.0 | 128.7 | |
|
previous
or next observation for the same group /

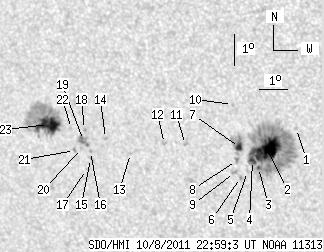

back to the solar disc SDO HMI 2011-10-08 22:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 0.91 | -14.12 | 122.12 | -23.49 | 131.37 | 0.5171 | 174.0 | 124.7 | |
| 38.22 | 184.54 | 22.39 | 107.99 | -14.84 | 121.05 | -24.55 | 131.18 | 0.5358 | 1158.4 | 424.7 | |
| 0.79 | -2.00 | 0.47 | -2.00 | -15.44 | 120.67 | -24.94 | 131.60 | 0.5456 | 665.0 | 999999 | |
| 3.24 | -2.00 | 1.91 | -2.00 | -15.22 | 120.49 | -25.12 | 131.09 | 0.5456 | 667.9 | 999999 | |
| 0.00 | 1.67 | 0.00 | 0.99 | -15.58 | 120.27 | -25.33 | 131.36 | 0.5513 | 266.0 | 201.8 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -15.79 | 120.00 | -25.60 | 131.36 | 0.5562 | 403.0 | 347.6 | |
| 4.21 | 16.22 | 2.48 | 9.57 | -14.82 | 120.09 | -25.51 | 130.08 | 0.5463 | 920.1 | 521.1 | |
| 0.00 | 2.45 | 0.00 | 1.46 | -15.25 | 119.94 | -25.67 | 130.52 | 0.5519 | 709.0 | 534.4 | |
| 0.00 | 2.63 | 0.00 | 1.57 | -15.64 | 119.81 | -25.79 | 130.94 | 0.5568 | 676.0 | 532.3 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -13.45 | 120.02 | -25.58 | 127.98 | 0.5349 | 607.0 | 537.5 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -14.82 | 118.22 | -27.38 | 128.12 | 0.5673 | 636.0 | 534.5 | |
| 0.00 | 1.75 | 0.00 | 1.06 | -14.83 | 117.49 | -28.12 | 127.40 | 0.5757 | -563.0 | -508.9 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -15.22 | 116.22 | -29.38 | 126.75 | 0.5931 | -703.0 | -523.6 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -14.79 | 115.40 | -30.21 | 125.40 | 0.5991 | -811.0 | -655.6 | |
| 0.00 | 1.93 | 0.00 | 1.20 | -15.47 | 114.75 | -30.86 | 125.77 | 0.6116 | -832.0 | -607.0 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -15.24 | 114.78 | -30.82 | 125.49 | 0.6094 | -679.0 | -563.4 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -15.83 | 114.54 | -31.07 | 126.10 | 0.6167 | -458.0 | -368.8 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -14.54 | 114.68 | -30.93 | 124.43 | 0.6054 | -955.0 | -817.5 | |
| 0.00 | 7.63 | 0.00 | 4.75 | -14.90 | 114.59 | -31.02 | 124.85 | 0.6091 | -924.0 | -810.3 | |
| 0.00 | 1.31 | 0.00 | 0.82 | -15.16 | 114.47 | -31.13 | 125.12 | 0.6124 | -667.0 | -527.1 | |
| 0.00 | 1.75 | 0.00 | 1.10 | -15.24 | 114.20 | -31.40 | 125.00 | 0.6160 | -673.0 | -558.8 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -14.54 | 114.21 | -31.40 | 124.03 | 0.6107 | -427.0 | -435.8 | |
| 20.60 | 85.74 | 12.97 | 54.04 | -14.46 | 113.38 | -32.22 | 123.24 | 0.6196 | -1019.4 | -345.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
