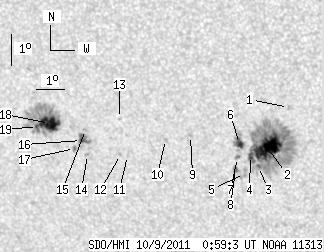

SDO HMI 2011-10-09 00:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.14 | 307.08 | 40.53 | 182.33 | -14.79 | 118.42 | -26.09 | 129.68 | 0.5529 | 270.4 | 155.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 00:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.70 | -13.51 | 121.85 | -22.66 | 131.47 | 0.5019 | 688.0 | 490.5 | |
| 33.23 | 181.34 | 19.30 | 105.21 | -14.83 | 121.00 | -23.50 | 132.39 | 0.5241 | 1193.5 | 448.4 | |
| 1.58 | -2.00 | 0.92 | -2.00 | -15.46 | 120.62 | -23.88 | 132.84 | 0.5343 | 580.8 | 999999 | |
| 3.51 | -2.00 | 2.05 | -2.00 | -15.11 | 120.39 | -24.12 | 132.08 | 0.5335 | 626.8 | 999999 | |
| 0.00 | 5.17 | 0.00 | 3.05 | -15.71 | 120.11 | -24.39 | 132.60 | 0.5422 | 330.0 | 295.8 | |
| 5.44 | 13.24 | 3.18 | 7.74 | -14.74 | 120.06 | -24.44 | 131.16 | 0.5337 | 885.8 | 566.5 | |
| 0.00 | 2.10 | 0.00 | 1.24 | -15.20 | 119.94 | -24.57 | 131.68 | 0.5393 | 785.0 | 615.1 | |
| 2.46 | 3.07 | 1.45 | 1.81 | -15.59 | 119.82 | -24.69 | 132.10 | 0.5443 | 549.1 | 47.4 | |
| 0.00 | 1.93 | 0.00 | 1.14 | -14.57 | 118.40 | -26.10 | 129.07 | 0.5506 | 819.0 | 649.0 | |
| 0.00 | 1.49 | 0.00 | 0.89 | -14.74 | 117.51 | -26.99 | 128.39 | 0.5622 | -596.0 | -419.6 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -15.33 | 116.10 | -28.41 | 127.82 | 0.5831 | -595.0 | -453.0 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -15.31 | 115.85 | -28.65 | 127.56 | 0.5856 | -716.0 | -574.2 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -14.15 | 115.98 | -28.52 | 126.04 | 0.5747 | 611.0 | 466.4 | |
| 0.00 | 1.75 | 0.00 | 1.08 | -15.38 | 114.66 | -29.84 | 126.55 | 0.5995 | -776.0 | -549.8 | |
| 0.00 | 1.67 | 0.00 | 1.02 | -14.58 | 114.72 | -29.79 | 125.47 | 0.5926 | -818.0 | -728.9 | |
| 1.93 | 10.17 | 1.19 | 6.27 | -14.94 | 114.52 | -29.99 | 125.81 | 0.5977 | -845.9 | -765.7 | |
| 0.00 | 2.19 | 0.00 | 1.36 | -15.21 | 114.22 | -30.28 | 125.93 | 0.6031 | -684.0 | -547.6 | |
| 17.89 | 78.57 | 11.12 | 48.90 | -14.46 | 113.44 | -31.06 | 124.19 | 0.6063 | -1055.0 | -379.4 | |
| 2.10 | -18.00 | 1.32 | -18.00 | -14.58 | 112.99 | -31.52 | 123.99 | 0.6124 | -638.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
