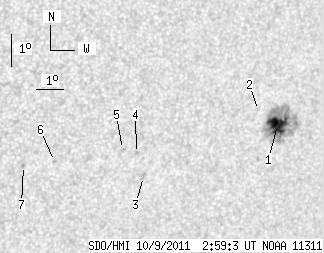

SDO HMI 2011-10-09 02:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.49 | 95.68 | 14.13 | 62.64 | -11.24 | 180.29 | 36.89 | 244.51 | 0.6542 | 524.5 | 250.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 02:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.49 | 87.44 | 14.13 | 57.57 | -11.18 | 180.78 | 37.38 | 244.95 | 0.6597 | 945.9 | 342.3 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -10.69 | 179.98 | 36.58 | 245.16 | 0.6476 | 773.0 | 662.8 | |
| 0.00 | 2.72 | 0.00 | 1.70 | -12.50 | 175.96 | 32.55 | 239.82 | 0.6100 | -700.0 | -598.2 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -11.75 | 175.60 | 32.20 | 240.64 | 0.6008 | -708.0 | -611.0 | |
| 0.00 | 1.49 | 0.00 | 0.92 | -11.59 | 175.08 | 31.67 | 240.47 | 0.5934 | -674.0 | -581.5 | |
| 0.00 | 1.40 | 0.00 | 0.84 | -11.83 | 172.69 | 29.28 | 238.13 | 0.5659 | -664.0 | -492.9 | |
| 0.00 | 1.32 | 0.00 | 0.78 | -11.90 | 171.61 | 28.21 | 237.06 | 0.5533 | -834.0 | -694.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
