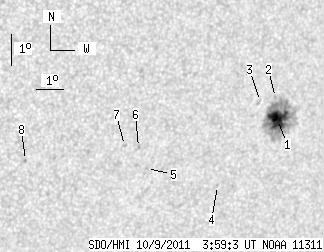

SDO HMI 2011-10-09 03:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.19 | 99.90 | 14.70 | 66.01 | -11.23 | 180.46 | 37.60 | 244.98 | 0.6626 | 582.7 | 255.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 03:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.19 | 92.27 | 14.70 | 61.21 | -11.19 | 180.78 | 37.92 | 245.25 | 0.6662 | 966.6 | 309.8 | |
| 0.00 | 1.05 | 0.00 | 0.69 | -10.49 | 180.60 | 37.74 | 246.13 | 0.6605 | 188.0 | 153.7 | |
| 0.00 | 0.61 | 0.00 | 0.40 | -10.58 | 180.03 | 37.18 | 245.68 | 0.6541 | 631.0 | 562.0 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -13.13 | 178.79 | 35.93 | 241.34 | 0.6536 | 577.0 | 415.8 | |
| 0.00 | 1.14 | 0.00 | 0.72 | -12.41 | 176.02 | 33.17 | 240.40 | 0.6167 | -669.0 | -538.3 | |
| 0.00 | 1.40 | 0.00 | 0.87 | -11.73 | 175.64 | 32.78 | 241.11 | 0.6077 | -694.0 | -569.8 | |
| 0.00 | 1.23 | 0.00 | 0.76 | -11.63 | 175.11 | 32.26 | 240.86 | 0.6007 | -754.0 | -592.4 | |
| 0.00 | 1.32 | 0.00 | 0.79 | -11.90 | 171.62 | 28.77 | 237.57 | 0.5601 | -842.0 | -696.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
