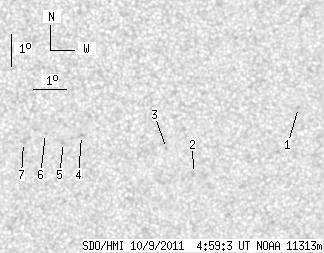

SDO HMI 2011-10-09 04:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.73 | 0.00 | 4.07 | -13.26 | 146.12 | 3.81 | 190.77 | 0.3442 | -106.0 | -93.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 04:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.28 | -12.19 | 151.52 | 9.22 | 206.37 | 0.3540 | 825.0 | 711.5 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -14.24 | 148.33 | 6.02 | 196.18 | 0.3663 | 903.0 | 770.5 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -13.43 | 147.47 | 5.16 | 194.55 | 0.3499 | 799.0 | 564.6 | |
| 0.00 | 2.46 | 0.00 | 1.29 | -13.00 | 144.85 | 2.54 | 187.43 | 0.3347 | -864.0 | -626.6 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -13.22 | 144.29 | 1.98 | 185.76 | 0.3372 | -725.0 | -649.0 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -12.93 | 143.74 | 1.43 | 184.22 | 0.3317 | -744.0 | -637.4 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -13.22 | 143.06 | 0.75 | 182.19 | 0.3358 | -936.0 | -900.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
