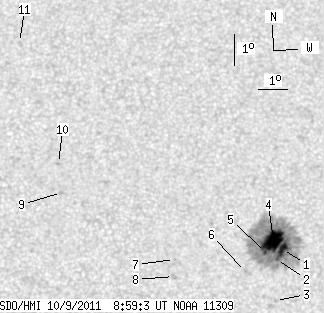

SDO HMI 2011-10-09 08:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.74 | 221.79 | 19.66 | 118.64 | 23.29 | 154.83 | 14.71 | 321.79 | 0.3789 | -908.3 | -369.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 08:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.10 | 211.97 | 3.80 | 113.44 | 23.08 | 155.25 | 15.13 | 320.62 | 0.3802 | -1236.2 | -409.5 | |
| 0.70 | -1.00 | 0.37 | -1.00 | 22.77 | 155.02 | 14.90 | 320.48 | 0.3741 | -1034.2 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 21.50 | 154.85 | 14.73 | 318.35 | 0.3574 | -764.0 | -644.8 | |
| 27.19 | -1.00 | 14.55 | -1.00 | 23.37 | 154.98 | 14.86 | 321.62 | 0.3809 | -1388.2 | 999999 | |
| 1.75 | -1.00 | 0.94 | -1.00 | 23.00 | 154.67 | 14.55 | 321.52 | 0.3733 | -1426.3 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 22.42 | 153.94 | 13.82 | 321.84 | 0.3590 | -849.0 | -656.5 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 22.85 | 151.62 | 11.50 | 327.40 | 0.3425 | 706.0 | 590.2 | |
| 0.00 | 2.63 | 0.00 | 1.38 | 22.32 | 151.54 | 11.42 | 326.66 | 0.3348 | 811.0 | 659.7 | |
| 0.00 | 2.37 | 0.00 | 1.25 | 25.02 | 148.03 | 7.91 | 338.86 | 0.3471 | 915.0 | 663.7 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 25.94 | 147.99 | 7.87 | 339.96 | 0.3608 | 1025.0 | 807.6 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 29.86 | 146.92 | 6.80 | 345.62 | 0.4155 | 686.0 | 487.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
