SDO HMI 2011-10-09 08:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.56 | 293.09 | 39.97 | 167.97 | -14.72 | 118.45 | -21.67 | 134.82 | 0.5035 | 206.1 | 158.4 | |
|
previous
or next observation for the same group /

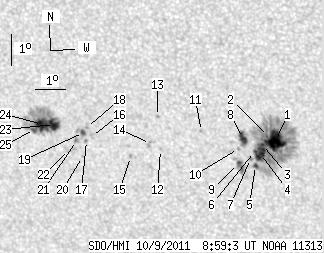

back to the solar disc SDO HMI 2011-10-09 08:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.89 | 173.74 | 12.86 | 97.75 | -14.62 | 121.09 | -19.03 | 138.04 | 0.4738 | 1272.5 | 437.4 | |
| 1.23 | -1.00 | 0.69 | -1.00 | -14.50 | 120.87 | -19.25 | 137.54 | 0.4747 | 978.1 | 999999 | |
| 0.88 | -1.00 | 0.49 | -1.00 | -14.76 | 120.65 | -19.47 | 137.60 | 0.4799 | 1043.9 | 999999 | |
| 8.51 | -1.00 | 4.81 | -1.00 | -15.06 | 120.56 | -19.56 | 137.89 | 0.4841 | 948.8 | 999999 | |
| 1.05 | -1.00 | 0.60 | -1.00 | -15.45 | 120.36 | -19.76 | 138.16 | 0.4906 | 563.6 | 999999 | |
| 1.32 | -1.00 | 0.74 | -1.00 | -15.00 | 120.37 | -19.75 | 137.53 | 0.4855 | 721.4 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.19 | -15.23 | 120.21 | -19.91 | 137.64 | 0.4896 | 701.0 | 525.0 | |
| 6.75 | 11.31 | 3.82 | 6.40 | -14.60 | 120.04 | -20.08 | 136.48 | 0.4844 | 918.6 | 563.5 | |
| 1.93 | 8.86 | 1.10 | 5.05 | -15.41 | 119.80 | -20.32 | 137.31 | 0.4958 | 615.5 | 514.9 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -14.92 | 119.85 | -20.27 | 136.68 | 0.4900 | 540.0 | 477.9 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -14.43 | 118.67 | -21.45 | 134.35 | 0.4973 | 570.0 | 479.9 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -15.07 | 117.23 | -22.89 | 133.43 | 0.5193 | -584.0 | -436.4 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -14.01 | 117.24 | -22.88 | 131.89 | 0.5088 | 769.0 | 624.4 | |
| 0.00 | 3.24 | 0.00 | 1.88 | -14.89 | 116.91 | -23.21 | 132.79 | 0.5210 | -638.0 | -632.6 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -15.34 | 116.18 | -23.94 | 132.56 | 0.5334 | -796.0 | -563.2 | |
| 0.00 | 2.02 | 0.00 | 1.19 | -14.76 | 114.92 | -25.20 | 130.27 | 0.5418 | -730.0 | -680.8 | |
| 0.00 | 1.32 | 0.00 | 0.78 | -14.89 | 114.73 | -25.39 | 130.26 | 0.5451 | -605.0 | -609.9 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -14.48 | 114.78 | -25.34 | 129.71 | 0.5407 | -890.0 | -767.4 | |
| 2.28 | 5.17 | 1.34 | 3.05 | -14.64 | 114.66 | -25.46 | 129.82 | 0.5436 | -925.8 | -724.6 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -15.42 | 114.53 | -25.59 | 130.79 | 0.5522 | -578.0 | -410.4 | |
| 0.00 | 2.72 | 0.00 | 1.61 | -14.91 | 114.39 | -25.73 | 129.91 | 0.5491 | -844.0 | -651.7 | |
| 0.00 | 5.61 | 0.00 | 3.34 | -15.21 | 114.10 | -26.02 | 130.04 | 0.5550 | -308.0 | -296.3 | |
| 7.89 | 68.85 | 4.68 | 40.99 | -14.44 | 113.69 | -26.43 | 128.47 | 0.5528 | -1065.3 | -423.7 | |
| 12.02 | -23.00 | 7.16 | -23.00 | -14.46 | 113.27 | -26.85 | 128.07 | 0.5577 | -924.4 | 999999 | |
| 2.81 | -23.00 | 1.68 | -23.00 | -14.63 | 112.97 | -27.15 | 128.02 | 0.5627 | -509.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
