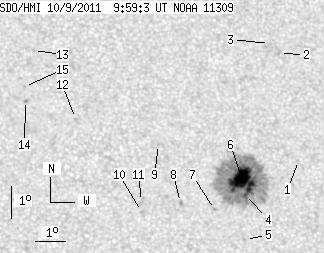

SDO HMI 2011-10-09 09:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.95 | 226.41 | 19.28 | 121.42 | 23.35 | 154.80 | 15.22 | 321.00 | 0.3848 | -776.8 | -364.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 09:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.24 | 23.85 | 156.98 | 17.40 | 318.27 | 0.4127 | -684.0 | -544.8 | |
| 0.00 | 1.84 | 0.00 | 1.02 | 27.26 | 156.83 | 17.25 | 323.98 | 0.4502 | -693.0 | -536.5 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 27.60 | 156.53 | 16.95 | 324.91 | 0.4514 | -635.0 | -538.1 | |
| 1.05 | 209.93 | 0.56 | 112.60 | 22.84 | 155.04 | 15.47 | 319.60 | 0.3810 | -1065.2 | -416.3 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 21.44 | 154.89 | 15.31 | 317.19 | 0.3633 | -789.0 | -634.1 | |
| 34.90 | -4.00 | 18.72 | -4.00 | 23.28 | 155.00 | 15.42 | 320.49 | 0.3856 | -1355.0 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 22.40 | 153.95 | 14.38 | 320.75 | 0.3645 | -857.0 | -655.9 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 22.65 | 152.84 | 13.27 | 323.34 | 0.3564 | 718.0 | 614.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 24.49 | 152.29 | 12.72 | 327.54 | 0.3749 | -694.0 | -523.0 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 22.40 | 151.53 | 11.95 | 325.63 | 0.3407 | 836.0 | 657.2 | |
| 0.00 | 3.95 | 0.00 | 2.08 | 22.71 | 151.55 | 11.98 | 326.12 | 0.3450 | 666.0 | 513.1 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 25.36 | 149.58 | 10.00 | 334.46 | 0.3657 | 781.0 | 664.2 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 27.56 | 148.33 | 8.76 | 339.65 | 0.3900 | 680.0 | 490.2 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 25.96 | 147.94 | 8.37 | 338.84 | 0.3640 | 857.0 | 762.1 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 26.41 | 147.94 | 8.37 | 339.32 | 0.3707 | 701.0 | 543.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
