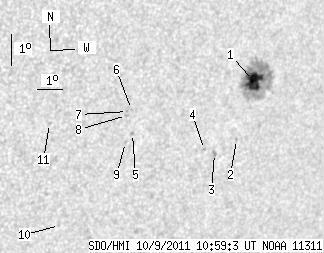

SDO HMI 2011-10-09 10:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.78 | 102.40 | 14.55 | 71.49 | -11.32 | 180.27 | 41.24 | 246.86 | 0.7051 | 383.1 | 176.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 10:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.78 | 90.22 | 14.55 | 63.31 | -11.14 | 180.68 | 41.65 | 247.34 | 0.7089 | 942.3 | 254.2 | |
| 0.00 | 1.14 | 0.00 | 0.80 | -12.97 | 180.33 | 41.30 | 244.77 | 0.7133 | 526.0 | 461.4 | |
| 0.00 | 2.72 | 0.00 | 1.90 | -13.35 | 179.51 | 40.48 | 243.83 | 0.7061 | -691.0 | -427.3 | |
| 0.00 | 1.40 | 0.00 | 0.97 | -13.19 | 179.07 | 40.04 | 243.80 | 0.7005 | 652.0 | 524.0 | |
| 0.00 | 1.23 | 0.00 | 0.81 | -12.48 | 176.10 | 37.08 | 243.01 | 0.6629 | -714.0 | -582.5 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -11.71 | 175.94 | 36.91 | 243.97 | 0.6568 | -693.0 | -599.1 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -11.77 | 175.79 | 36.77 | 243.80 | 0.6554 | -766.0 | -604.8 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -11.89 | 175.77 | 36.75 | 243.62 | 0.6559 | -762.0 | -601.5 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -12.75 | 175.88 | 36.85 | 242.50 | 0.6618 | -570.0 | -524.6 | |
| 0.00 | 0.61 | 0.00 | 0.40 | -15.25 | 173.81 | 34.79 | 237.70 | 0.6535 | -659.0 | -531.6 | |
| 0.00 | 1.58 | 0.00 | 1.00 | -11.95 | 172.89 | 33.86 | 241.62 | 0.6219 | -628.0 | -389.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
