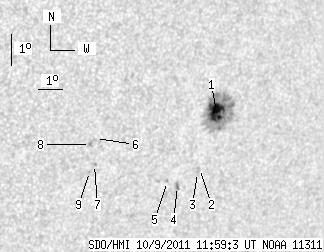

SDO HMI 2011-10-09 11:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.02 | 96.86 | 13.44 | 68.33 | -11.35 | 180.40 | 41.93 | 247.19 | 0.7130 | 513.2 | 196.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 11:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.02 | 85.20 | 13.44 | 60.31 | -11.16 | 180.70 | 42.23 | 247.61 | 0.7155 | 934.1 | 268.7 | |
| 0.00 | 1.49 | 0.00 | 1.06 | -12.92 | 180.34 | 41.87 | 245.13 | 0.7193 | 731.0 | 492.6 | |
| 0.00 | 0.96 | 0.00 | 0.69 | -13.04 | 180.29 | 41.81 | 244.95 | 0.7192 | 414.0 | 377.4 | |
| 0.00 | 2.98 | 0.00 | 2.10 | -13.43 | 179.54 | 41.07 | 244.05 | 0.7129 | -668.0 | -476.7 | |
| 0.00 | 1.14 | 0.00 | 0.80 | -13.24 | 179.10 | 40.62 | 244.06 | 0.7071 | 573.0 | 536.7 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -11.66 | 175.96 | 37.48 | 244.39 | 0.6632 | -537.0 | -534.2 | |
| 0.00 | 1.31 | 0.00 | 0.87 | -12.48 | 176.06 | 37.58 | 243.31 | 0.6688 | -677.0 | -610.9 | |
| 0.00 | 1.67 | 0.00 | 1.10 | -11.84 | 175.79 | 37.32 | 244.04 | 0.6622 | -767.0 | -643.3 | |
| 0.00 | 1.58 | 0.00 | 1.05 | -12.69 | 175.90 | 37.42 | 242.93 | 0.6681 | -621.0 | -556.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
