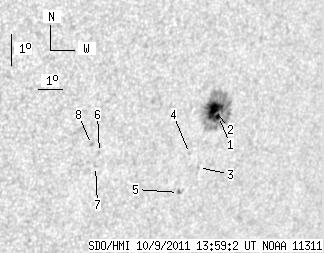

SDO HMI 2011-10-09 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.29 | 92.98 | 10.28 | 66.81 | -11.28 | 180.49 | 43.11 | 247.85 | 0.7259 | 480.0 | 277.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.58 | 84.57 | 1.14 | 60.92 | -11.35 | 180.89 | 43.51 | 247.97 | 0.7305 | 591.1 | 330.6 | |
| 11.66 | -1.00 | 8.38 | -1.00 | -11.11 | 180.68 | 43.30 | 248.17 | 0.7272 | 962.8 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.76 | -12.91 | 180.36 | 42.98 | 245.72 | 0.7314 | 695.0 | 522.8 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -12.43 | 179.89 | 42.51 | 246.09 | 0.7241 | 564.0 | 428.2 | |
| 1.05 | 2.80 | 0.76 | 2.02 | -13.65 | 179.68 | 42.31 | 244.43 | 0.7274 | -615.5 | -468.6 | |
| 0.00 | 0.96 | 0.00 | 0.65 | -12.13 | 176.18 | 38.80 | 244.52 | 0.6810 | -691.0 | -541.5 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -12.56 | 176.10 | 38.72 | 243.89 | 0.6823 | -766.0 | -590.9 | |
| 0.00 | 1.67 | 0.00 | 1.12 | -11.85 | 175.82 | 38.44 | 244.69 | 0.6754 | -742.0 | -634.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
