SDO HMI 2011-10-09 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.68 | 19.01 | 2.08 | 10.88 | 21.99 | 110.96 | -26.41 | 55.73 | 0.5022 | 323.1 | 252.0 | |
|
previous
or next observation for the same group /

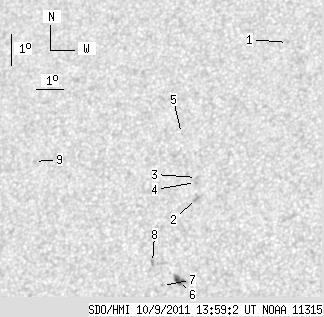

back to the solar disc SDO HMI 2011-10-09 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.66 | 27.79 | 113.75 | -23.63 | 43.39 | 0.5182 | 787.0 | 593.8 | |
| 0.00 | 3.42 | 0.00 | 1.95 | 22.73 | 111.53 | -25.84 | 53.87 | 0.4998 | 833.0 | 678.9 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 23.38 | 111.40 | -25.98 | 52.86 | 0.5064 | 784.0 | 630.9 | |
| 0.00 | 1.31 | 0.00 | 0.75 | 23.23 | 111.40 | -25.98 | 53.13 | 0.5052 | 927.0 | 729.1 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 24.74 | 110.55 | -26.83 | 51.37 | 0.5268 | 541.0 | 442.2 | |
| 3.68 | 7.45 | 2.08 | 4.21 | 20.17 | 111.38 | -26.00 | 58.65 | 0.4838 | -743.3 | -692.1 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 19.99 | 110.84 | -26.53 | 59.42 | 0.4896 | -417.0 | -316.4 | |
| 0.00 | 1.40 | 0.00 | 0.80 | 20.68 | 110.36 | -27.02 | 58.54 | 0.5003 | 703.0 | 648.0 | |
| 0.00 | 1.31 | 0.00 | 0.80 | 23.58 | 105.29 | -32.09 | 57.27 | 0.5810 | 645.0 | 554.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
