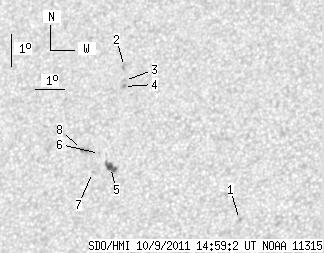

SDO HMI 2011-10-09 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.80 | 20.51 | 4.39 | 11.59 | 21.04 | 111.36 | -25.46 | 56.59 | 0.4830 | 38.4 | 451.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.43 | 18.75 | 116.14 | -20.69 | 56.33 | 0.4037 | 858.0 | 686.6 | |
| 0.00 | 2.45 | 0.00 | 1.40 | 23.31 | 111.37 | -25.45 | 52.50 | 0.4995 | 635.0 | 699.7 | |
| 0.00 | 1.49 | 0.00 | 0.85 | 22.87 | 111.46 | -25.36 | 53.17 | 0.4951 | 669.0 | 508.9 | |
| 0.00 | 1.93 | 0.00 | 1.10 | 22.69 | 111.46 | -25.36 | 53.50 | 0.4936 | 789.0 | 684.7 | |
| 6.75 | 8.15 | 3.79 | 4.58 | 20.16 | 111.47 | -25.36 | 58.11 | 0.4754 | -765.3 | -497.7 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 20.58 | 111.01 | -25.82 | 57.74 | 0.4842 | 386.0 | 353.2 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 19.98 | 110.87 | -25.96 | 58.97 | 0.4821 | -518.0 | -366.4 | |
| 1.05 | 4.03 | 0.60 | 2.29 | 20.67 | 110.35 | -26.48 | 58.12 | 0.4933 | 801.1 | 714.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
