SDO HMI 2011-10-09 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.55 | 249.15 | 38.89 | 139.24 | -14.64 | 118.37 | -17.91 | 140.16 | 0.4641 | 242.3 | 132.3 | |
|
previous
or next observation for the same group /

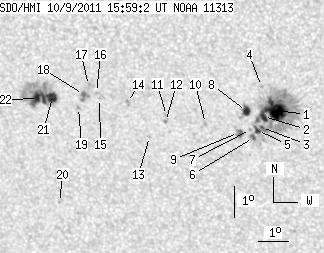

back to the solar disc SDO HMI 2011-10-09 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.31 | 147.97 | 16.67 | 81.44 | -14.56 | 121.00 | -15.28 | 144.05 | 0.4364 | 1233.7 | 431.8 | |
| 5.08 | -1.00 | 2.80 | -1.00 | -14.77 | 120.56 | -15.71 | 143.58 | 0.4429 | 850.2 | 999999 | |
| 1.40 | -1.00 | 0.78 | -1.00 | -15.12 | 120.47 | -15.80 | 143.91 | 0.4482 | 618.0 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -13.81 | 120.57 | -15.71 | 142.22 | 0.4310 | 855.0 | 636.0 | |
| 2.89 | -1.00 | 1.60 | -1.00 | -15.22 | 120.33 | -15.94 | 143.81 | 0.4507 | 801.9 | 999999 | |
| 2.28 | -1.00 | 1.27 | -1.00 | -15.45 | 120.19 | -16.09 | 143.87 | 0.4549 | 495.7 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -15.20 | 120.11 | -16.17 | 143.39 | 0.4525 | 709.0 | 555.6 | |
| 5.26 | 9.20 | 2.91 | 5.09 | -14.62 | 120.03 | -16.25 | 142.46 | 0.4462 | 948.1 | 658.4 | |
| 0.00 | 6.22 | 0.00 | 3.46 | -15.31 | 119.71 | -16.56 | 142.88 | 0.4575 | 649.0 | 573.0 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -15.05 | 118.66 | -17.61 | 140.82 | 0.4645 | 796.0 | 664.1 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -14.84 | 117.41 | -18.87 | 138.59 | 0.4745 | -164.0 | -258.2 | |
| 0.00 | 1.75 | 0.00 | 0.99 | -15.04 | 117.36 | -18.92 | 138.79 | 0.4772 | -625.0 | -482.5 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -15.54 | 116.78 | -19.49 | 138.66 | 0.4887 | -627.0 | -579.6 | |
| 0.00 | 2.72 | 0.00 | 1.53 | -14.47 | 116.16 | -20.11 | 136.23 | 0.4833 | -752.0 | -556.3 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -14.38 | 115.25 | -21.03 | 134.83 | 0.4921 | -806.0 | -622.8 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -14.19 | 115.17 | -21.11 | 134.44 | 0.4910 | -671.0 | -569.4 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -13.98 | 114.92 | -21.35 | 133.79 | 0.4915 | -925.0 | -809.9 | |
| 2.10 | 4.99 | 1.20 | 2.85 | -14.28 | 114.73 | -21.55 | 133.98 | 0.4967 | -856.1 | -800.1 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -14.70 | 114.52 | -21.76 | 134.33 | 0.5033 | -842.0 | -624.8 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -17.82 | 113.50 | -22.78 | 137.34 | 0.5460 | -749.0 | -544.1 | |
| 7.18 | 65.79 | 4.13 | 37.93 | -14.42 | 113.68 | -22.60 | 132.83 | 0.5096 | -1108.8 | -439.4 | |
| 13.05 | -21.00 | 7.53 | -21.00 | -14.47 | 113.20 | -23.07 | 132.32 | 0.5153 | -898.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
