SDO HMI 2011-10-09 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.37 | 22.25 | 1.32 | 12.43 | 21.20 | 111.74 | -23.99 | 54.89 | 0.4655 | 527.6 | 144.0 | |
|
previous
or next observation for the same group /

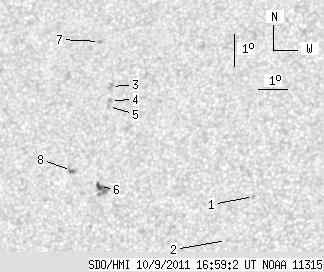

back to the solar disc SDO HMI 2011-10-09 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.75 | 20.10 | 116.82 | -18.90 | 51.18 | 0.3921 | 673.0 | 433.5 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 18.72 | 116.09 | -19.64 | 55.14 | 0.3896 | 699.0 | 555.4 | |
| 0.00 | 2.28 | 0.00 | 1.29 | 23.32 | 111.39 | -24.34 | 51.39 | 0.4863 | 752.0 | 677.1 | |
| 0.00 | 1.75 | 0.00 | 0.99 | 22.88 | 111.43 | -24.29 | 52.11 | 0.4822 | 899.0 | 701.7 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 22.69 | 111.40 | -24.33 | 52.48 | 0.4811 | 760.0 | 612.3 | |
| 2.37 | 9.64 | 1.32 | 5.37 | 20.21 | 111.52 | -24.20 | 56.98 | 0.4607 | -839.9 | -754.3 | |
| 0.00 | 1.40 | 0.00 | 0.80 | 24.71 | 110.67 | -25.06 | 49.74 | 0.5062 | 849.0 | 675.9 | |
| 0.00 | 3.68 | 0.00 | 2.07 | 20.66 | 110.46 | -25.26 | 57.10 | 0.4776 | 866.0 | 737.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
