SDO HMI 2011-10-09 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.67 | 27.84 | 4.81 | 15.56 | 21.02 | 111.21 | -23.96 | 55.23 | 0.4636 | 125.2 | 310.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

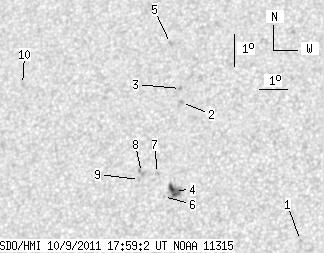

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.56 | 18.78 | 116.16 | -19.01 | 54.21 | 0.3818 | 792.0 | 534.3 | |
| 0.00 | 2.28 | 0.00 | 1.28 | 22.88 | 111.45 | -23.72 | 51.53 | 0.4753 | 874.0 | 655.2 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 23.32 | 111.34 | -23.84 | 50.88 | 0.4803 | 894.0 | 782.5 | |
| 8.67 | 13.66 | 4.81 | 7.58 | 20.15 | 111.68 | -23.49 | 56.42 | 0.4511 | -833.6 | -466.6 | |
| 0.00 | 1.84 | 0.00 | 1.05 | 24.71 | 110.70 | -24.48 | 49.16 | 0.4995 | 753.0 | 644.1 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 19.95 | 111.33 | -23.84 | 57.15 | 0.4542 | -599.0 | -347.8 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 20.65 | 111.00 | -24.17 | 56.11 | 0.4635 | 902.0 | 644.1 | |
| 0.00 | 2.98 | 0.00 | 1.67 | 20.65 | 110.44 | -24.73 | 56.63 | 0.4707 | 719.0 | 723.5 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 20.44 | 110.41 | -24.76 | 57.07 | 0.4696 | 710.0 | 586.8 | |
| 0.00 | 1.31 | 0.00 | 0.78 | 23.17 | 105.60 | -29.58 | 56.19 | 0.5483 | 693.0 | 530.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
