SDO HMI 2011-10-09 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.62 | 28.65 | 4.21 | 16.01 | 21.90 | 111.19 | -23.43 | 53.10 | 0.4644 | 327.0 | 411.0 | |
|
previous
or next observation for the same group /

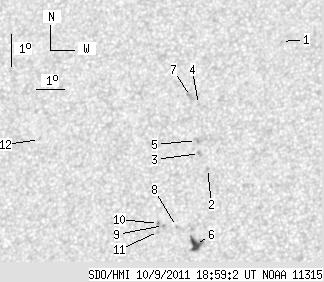

back to the solar disc SDO HMI 2011-10-09 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.54 | 26.57 | 113.66 | -20.96 | 42.15 | 0.4787 | 714.0 | 634.0 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 22.48 | 111.79 | -22.83 | 51.31 | 0.4613 | 817.0 | 623.4 | |
| 0.00 | 2.28 | 0.00 | 1.28 | 22.93 | 111.42 | -23.20 | 50.88 | 0.4695 | 934.0 | 728.2 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 24.46 | 111.10 | -23.52 | 48.57 | 0.4865 | 724.0 | 565.9 | |
| 0.00 | 2.19 | 0.00 | 1.23 | 23.33 | 111.24 | -23.38 | 50.37 | 0.4750 | 749.0 | 720.1 | |
| 7.62 | 11.21 | 4.21 | 6.19 | 20.11 | 111.76 | -22.86 | 55.86 | 0.4426 | -895.0 | -674.4 | |
| 0.00 | 3.94 | 0.00 | 2.24 | 24.70 | 110.76 | -23.86 | 48.53 | 0.4924 | 801.0 | 491.0 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 20.64 | 111.01 | -23.61 | 55.58 | 0.4562 | 891.0 | 682.6 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 20.65 | 110.56 | -24.06 | 56.00 | 0.4621 | 965.0 | 767.8 | |
| 0.00 | 1.49 | 0.00 | 0.83 | 20.71 | 110.37 | -24.25 | 56.08 | 0.4649 | 744.0 | 676.9 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 20.46 | 110.41 | -24.21 | 56.51 | 0.4626 | 777.0 | 623.9 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 23.11 | 105.58 | -29.04 | 55.89 | 0.5413 | 625.0 | 562.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
