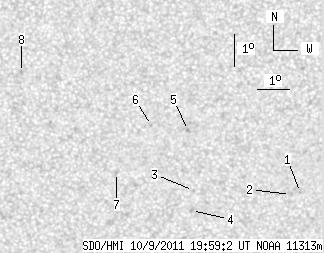

SDO HMI 2011-10-09 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.21 | 0.00 | 6.03 | -14.14 | 144.25 | 10.18 | 205.82 | 0.3897 | -96.9 | -68.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.63 | -15.23 | 148.06 | 13.99 | 212.71 | 0.4336 | 649.0 | 480.5 | |
| 0.00 | 1.58 | 0.00 | 0.86 | -15.29 | 147.75 | 13.68 | 212.05 | 0.4317 | 451.0 | 422.2 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -15.08 | 144.66 | 10.59 | 206.10 | 0.4051 | 664.0 | 536.5 | |
| 0.00 | 1.66 | 0.00 | 0.90 | -15.73 | 144.63 | 10.56 | 205.33 | 0.4141 | 821.0 | 557.8 | |
| 0.00 | 1.75 | 0.00 | 0.94 | -13.16 | 144.41 | 10.34 | 207.85 | 0.3758 | -820.0 | -676.5 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -12.98 | 143.25 | 9.18 | 205.35 | 0.3648 | -790.0 | -670.3 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -14.46 | 142.21 | 8.15 | 201.25 | 0.3802 | -820.0 | -551.3 | |
| 0.00 | 1.58 | 0.00 | 0.82 | -11.25 | 139.19 | 5.12 | 196.25 | 0.3144 | -930.0 | -628.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
