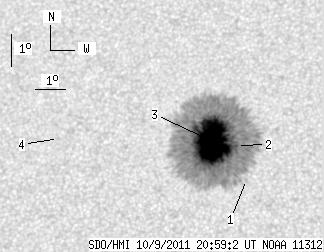

SDO HMI 2011-10-09 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 113.17 | 614.76 | 59.85 | 325.08 | 23.19 | 121.53 | -11.98 | 33.05 | 0.3514 | -1508.8 | -423.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.75 | 0.00 | 0.92 | 22.03 | 122.75 | -10.76 | 32.33 | 0.3251 | -257.0 | -207.8 | |
| 0.96 | 612.05 | 0.51 | 323.64 | 23.09 | 122.34 | -11.18 | 31.48 | 0.3430 | -1167.2 | -426.5 | |
| 112.21 | -2.00 | 59.34 | -2.00 | 23.19 | 121.53 | -11.98 | 33.05 | 0.3515 | -1573.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 23.15 | 116.35 | -17.16 | 42.61 | 0.4025 | 887.0 | 641.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
