SDO HMI 2011-10-09 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.33 | 257.10 | 32.24 | 141.67 | -14.68 | 118.23 | -15.28 | 144.63 | 0.4397 | 192.8 | 150.3 | |
|
previous
or next observation for the same group /

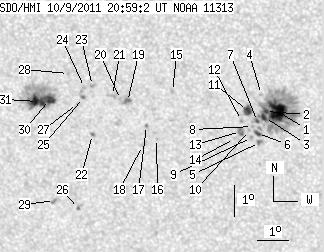

back to the solar disc SDO HMI 2011-10-09 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.80 | 140.68 | 10.76 | 76.44 | -14.55 | 120.97 | -12.54 | 149.21 | 0.4124 | 1351.9 | 484.1 | |
| 2.01 | -1.00 | 1.10 | -1.00 | -14.56 | 120.59 | -12.92 | 148.46 | 0.4157 | 1045.7 | 999999 | |
| 3.15 | -1.00 | 1.72 | -1.00 | -14.75 | 120.55 | -12.97 | 148.63 | 0.4186 | 979.3 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -14.01 | 120.50 | -13.02 | 147.56 | 0.4092 | 568.0 | 486.9 | |
| 0.00 | 3.24 | 0.00 | 1.78 | -15.56 | 120.34 | -13.18 | 149.24 | 0.4312 | 680.0 | 523.6 | |
| 2.37 | -1.00 | 1.29 | -1.00 | -15.27 | 120.29 | -13.22 | 148.79 | 0.4277 | 807.6 | 999999 | |
| 1.31 | -1.00 | 0.72 | -1.00 | -14.88 | 120.32 | -13.20 | 148.35 | 0.4223 | 890.9 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -15.05 | 120.15 | -13.37 | 148.24 | 0.4259 | 729.0 | 592.7 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -15.40 | 120.09 | -13.42 | 148.58 | 0.4311 | 726.0 | 496.9 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -15.18 | 120.04 | -13.47 | 148.20 | 0.4285 | 815.0 | 615.9 | |
| 6.04 | 7.10 | 3.30 | 3.87 | -14.54 | 120.02 | -13.49 | 147.33 | 0.4202 | 1007.1 | 841.0 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -14.86 | 119.81 | -13.71 | 147.35 | 0.4263 | 725.0 | 640.7 | |
| 0.00 | 5.08 | 0.00 | 2.79 | -15.22 | 119.75 | -13.76 | 147.71 | 0.4315 | 746.0 | 627.7 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -15.45 | 119.55 | -13.97 | 147.62 | 0.4363 | 479.0 | 331.5 | |
| 0.00 | 1.93 | 0.00 | 1.06 | -14.00 | 117.66 | -15.85 | 142.25 | 0.4348 | 830.0 | 618.3 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -15.53 | 117.03 | -16.49 | 143.30 | 0.4595 | -694.0 | -570.8 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -15.12 | 116.74 | -16.78 | 142.27 | 0.4572 | 635.0 | 556.0 | |
| 0.00 | 1.75 | 0.00 | 0.98 | -15.77 | 116.55 | -16.96 | 142.85 | 0.4668 | -838.0 | -558.3 | |
| 3.15 | 6.22 | 1.75 | 3.45 | -14.37 | 116.18 | -17.33 | 140.30 | 0.4537 | -764.0 | -298.4 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -14.31 | 115.96 | -17.55 | 139.86 | 0.4552 | -748.0 | -670.8 | |
| 0.00 | 3.94 | 0.00 | 2.19 | -14.19 | 115.71 | -17.80 | 139.28 | 0.4563 | -840.0 | -656.0 | |
| 0.44 | 1.58 | 0.25 | 0.89 | -15.47 | 114.95 | -18.57 | 139.93 | 0.4787 | -790.8 | -664.2 | |
| 0.00 | 2.19 | 0.00 | 1.22 | -13.90 | 115.09 | -18.43 | 137.87 | 0.4593 | -1075.0 | -808.8 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -13.97 | 114.82 | -18.70 | 137.57 | 0.4629 | -799.0 | -788.0 | |
| 1.31 | 1.49 | 0.74 | 0.83 | -14.29 | 114.76 | -18.76 | 137.95 | 0.4672 | -863.4 | -624.0 | |
| 1.14 | 2.54 | 0.66 | 1.46 | -17.90 | 114.23 | -19.28 | 142.09 | 0.5135 | 673.2 | 568.6 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -14.49 | 114.55 | -18.97 | 137.93 | 0.4716 | -709.0 | -595.4 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -13.54 | 114.34 | -19.18 | 136.19 | 0.4633 | 370.0 | 281.4 | |
| 0.00 | 3.50 | 0.00 | 2.03 | -17.67 | 113.46 | -20.06 | 140.71 | 0.5181 | -938.0 | -593.2 | |
| 7.36 | 62.11 | 4.15 | 35.09 | -14.40 | 113.64 | -19.88 | 136.46 | 0.4801 | -1134.5 | -522.9 | |
| 10.25 | -30.00 | 5.80 | -30.00 | -14.48 | 113.23 | -20.28 | 136.00 | 0.4852 | -991.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
