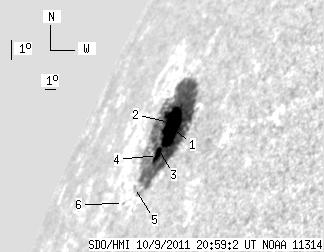

SDO HMI 2011-10-09 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.15 | 274.01 | 75.59 | 472.60 | 26.81 | 59.23 | -74.29 | 63.84 | 0.9585 | -453.9 | -120.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.64 | 271.38 | 48.59 | 467.82 | 26.94 | 59.44 | -74.08 | 63.70 | 0.9576 | -708.7 | -126.5 | |
| 9.29 | -1.00 | 16.33 | -1.00 | 27.06 | 58.70 | -74.82 | 63.59 | 0.9608 | 170.3 | 999999 | |
| 0.26 | -1.00 | 0.46 | -1.00 | 26.23 | 58.96 | -74.55 | 64.46 | 0.9596 | 104.3 | 999999 | |
| 5.96 | -1.00 | 10.21 | -1.00 | 26.02 | 59.21 | -74.31 | 64.67 | 0.9585 | -481.7 | 999999 | |
| 0.00 | 1.49 | 0.00 | 2.68 | 24.87 | 58.29 | -75.22 | 65.88 | 0.9624 | 470.0 | 418.6 | |
| 0.00 | 1.14 | 0.00 | 2.10 | 24.30 | 57.85 | -75.67 | 66.48 | 0.9643 | 279.0 | 259.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
