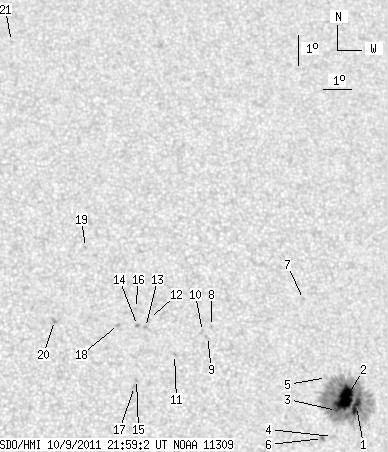

SDO HMI 2011-10-09 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.25 | 218.49 | 19.05 | 121.26 | 23.53 | 154.23 | 21.26 | 312.50 | 0.4533 | -371.3 | -307.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.53 | 193.79 | 4.19 | 107.77 | 23.10 | 155.11 | 22.14 | 310.59 | 0.4585 | -1085.7 | -423.8 | |
| 25.67 | -1.00 | 14.28 | -1.00 | 23.37 | 154.77 | 21.80 | 311.46 | 0.4569 | -1316.6 | 999999 | |
| 1.05 | -1.00 | 0.58 | -1.00 | 23.00 | 154.39 | 21.43 | 311.26 | 0.4492 | -1495.2 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.16 | 22.20 | 154.12 | 21.16 | 310.10 | 0.4387 | -713.0 | -537.9 | |
| 0.00 | 1.58 | 0.00 | 0.88 | 24.05 | 154.22 | 21.25 | 313.33 | 0.4569 | -92.0 | -65.1 | |
| 0.00 | 1.66 | 0.00 | 0.91 | 22.15 | 153.77 | 20.80 | 310.44 | 0.4340 | 699.0 | 581.5 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 26.54 | 153.86 | 20.89 | 317.89 | 0.4777 | -599.0 | -511.8 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 25.79 | 150.48 | 17.51 | 321.36 | 0.4357 | 864.0 | 546.0 | |
| 0.00 | 0.53 | 0.00 | 0.29 | 25.48 | 150.29 | 17.33 | 321.14 | 0.4303 | 658.0 | 525.0 | |
| 0.00 | 1.58 | 0.00 | 0.86 | 25.64 | 150.14 | 17.18 | 321.63 | 0.4307 | 816.0 | 637.6 | |
| 0.00 | 1.49 | 0.00 | 0.81 | 24.95 | 149.07 | 16.11 | 322.19 | 0.4121 | 712.0 | 607.8 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 26.11 | 148.37 | 15.40 | 325.18 | 0.4196 | 627.0 | 530.0 | |
| 0.00 | 1.66 | 0.00 | 0.91 | 25.83 | 148.19 | 15.23 | 325.05 | 0.4145 | 825.0 | 627.2 | |
| 0.00 | 1.66 | 0.00 | 0.90 | 25.90 | 147.93 | 14.96 | 325.61 | 0.4130 | 939.0 | 733.9 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 24.19 | 147.68 | 14.72 | 323.32 | 0.3896 | 797.0 | 686.3 | |
| 0.00 | 1.49 | 0.00 | 0.81 | 26.44 | 147.93 | 14.97 | 326.42 | 0.4198 | 718.0 | 537.0 | |
| 0.00 | 1.75 | 0.00 | 0.94 | 23.98 | 147.59 | 14.62 | 323.12 | 0.3860 | 979.0 | 762.0 | |
| 0.00 | 1.66 | 0.00 | 0.90 | 25.95 | 147.28 | 14.32 | 326.81 | 0.4079 | 809.0 | 656.8 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 28.44 | 146.45 | 13.49 | 331.65 | 0.4337 | 807.0 | 662.1 | |
| 0.00 | 2.37 | 0.00 | 1.27 | 26.13 | 145.11 | 12.15 | 331.08 | 0.3923 | 952.0 | 754.8 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 35.34 | 144.74 | 11.78 | 341.16 | 0.5175 | 665.0 | 566.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
