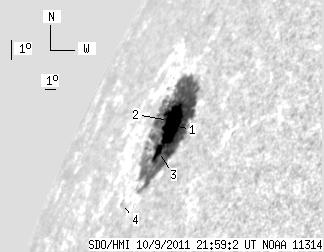

SDO HMI 2011-10-09 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.59 | 274.12 | 74.31 | 460.43 | 26.84 | 59.18 | -73.79 | 63.79 | 0.9562 | -495.6 | -136.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.40 | 272.28 | 50.25 | 457.12 | 26.95 | 59.35 | -73.62 | 63.68 | 0.9555 | -715.2 | -139.7 | |
| 8.76 | -1.00 | 15.00 | -1.00 | 27.05 | 58.68 | -74.29 | 63.59 | 0.9585 | 173.6 | 999999 | |
| 5.43 | -1.00 | 9.06 | -1.00 | 26.07 | 59.18 | -73.79 | 64.60 | 0.9561 | -464.8 | 999999 | |
| 0.00 | 1.84 | 0.00 | 3.31 | 24.21 | 57.71 | -75.25 | 66.57 | 0.9625 | 218.0 | 207.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
