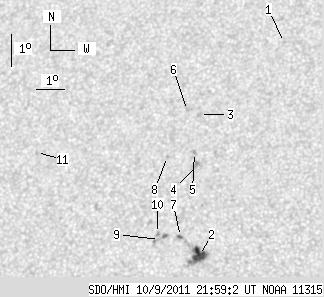

SDO HMI 2011-10-09 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.97 | 39.43 | 7.08 | 21.73 | 21.39 | 111.23 | -21.74 | 52.20 | 0.4392 | 84.5 | 369.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.54 | 26.89 | 113.76 | -19.20 | 39.35 | 0.4645 | 720.0 | 558.9 | |
| 11.48 | 17.70 | 6.26 | 9.65 | 20.12 | 111.89 | -21.08 | 53.89 | 0.4198 | -937.6 | -519.6 | |
| 0.00 | 2.19 | 0.00 | 1.23 | 24.50 | 111.18 | -21.79 | 46.54 | 0.4672 | 814.0 | 653.5 | |
| 0.00 | 3.42 | 0.00 | 1.89 | 22.94 | 111.38 | -21.58 | 49.05 | 0.4504 | 877.0 | 662.4 | |
| 0.00 | 2.19 | 0.00 | 1.22 | 23.31 | 111.21 | -21.75 | 48.58 | 0.4557 | 863.0 | 682.8 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 24.61 | 110.73 | -22.23 | 46.88 | 0.4732 | 636.0 | 452.1 | |
| 1.49 | 1.75 | 0.82 | 0.96 | 20.68 | 111.15 | -21.81 | 53.60 | 0.4337 | 735.5 | 667.7 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 23.14 | 110.29 | -22.67 | 49.93 | 0.4651 | 617.0 | 386.1 | |
| 0.00 | 5.87 | 0.00 | 3.24 | 20.56 | 110.45 | -22.52 | 54.61 | 0.4417 | 657.0 | 715.9 | |
| 0.00 | 1.93 | 0.00 | 1.06 | 20.74 | 110.35 | -22.62 | 54.36 | 0.4444 | 740.0 | 627.6 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 23.06 | 105.60 | -27.37 | 54.63 | 0.5207 | 700.0 | 578.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
