SDO HMI 2011-10-09 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.60 | 285.45 | 72.43 | 467.02 | 26.86 | 59.17 | -73.24 | 63.76 | 0.9537 | -492.7 | -142.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

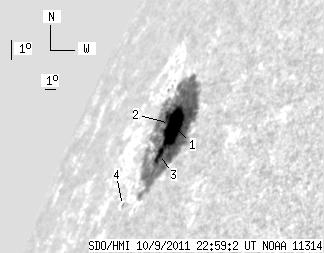

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.84 | 284.14 | 49.72 | 464.72 | 26.98 | 59.34 | -73.07 | 63.63 | 0.9529 | -690.9 | -144.5 | |
| 8.24 | -1.00 | 13.74 | -1.00 | 27.04 | 58.64 | -73.78 | 63.59 | 0.9562 | 158.3 | 999999 | |
| 5.52 | -1.00 | 8.97 | -1.00 | 26.06 | 59.12 | -73.29 | 64.61 | 0.9538 | -463.3 | 999999 | |
| 0.00 | 1.31 | 0.00 | 2.30 | 24.23 | 57.64 | -74.78 | 66.54 | 0.9604 | 155.0 | 208.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
