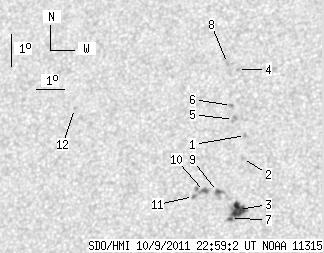

SDO HMI 2011-10-09 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.05 | 51.33 | 9.82 | 28.13 | 21.05 | 111.24 | -21.17 | 52.17 | 0.4289 | 86.0 | 398.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.75 | 0.00 | 0.96 | 22.44 | 111.78 | -20.63 | 48.80 | 0.4346 | 927.0 | 748.0 | |
| 0.00 | 1.40 | 0.00 | 0.77 | 21.72 | 111.79 | -20.62 | 50.16 | 0.4280 | 800.0 | 638.1 | |
| 12.53 | 20.76 | 6.81 | 11.28 | 20.14 | 111.88 | -20.53 | 53.19 | 0.4131 | -941.8 | -387.9 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 24.49 | 111.16 | -21.25 | 45.91 | 0.4612 | 825.0 | 706.2 | |
| 0.00 | 3.24 | 0.00 | 1.79 | 22.92 | 111.29 | -21.13 | 48.52 | 0.4449 | 751.0 | 722.4 | |
| 0.00 | 1.84 | 0.00 | 1.02 | 23.36 | 111.15 | -21.27 | 47.91 | 0.4506 | 913.0 | 716.3 | |
| 1.31 | -3.00 | 0.71 | -3.00 | 19.86 | 111.65 | -20.77 | 54.07 | 0.4136 | -620.9 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.03 | 24.67 | 110.77 | -21.64 | 46.08 | 0.4672 | 734.0 | 619.9 | |
| 2.37 | 9.64 | 1.29 | 5.27 | 20.67 | 111.08 | -21.33 | 53.07 | 0.4275 | 762.4 | 330.2 | |
| 1.84 | 6.83 | 1.01 | 3.75 | 20.65 | 110.64 | -21.77 | 53.61 | 0.4330 | 890.6 | 721.5 | |
| 0.00 | 1.93 | 0.00 | 1.06 | 20.49 | 110.29 | -22.13 | 54.33 | 0.4361 | 906.0 | 797.2 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 23.03 | 105.60 | -26.81 | 54.21 | 0.5138 | 647.0 | 538.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
