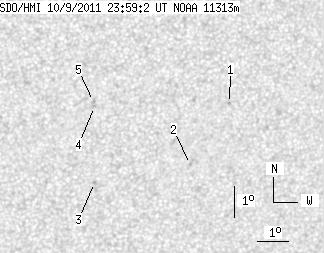

SDO HMI 2011-10-09 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.22 | 0.00 | 3.39 | -14.04 | 145.82 | 13.95 | 214.14 | 0.4183 | 137.8 | 55.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-09 23:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.63 | -13.25 | 148.79 | 16.93 | 220.72 | 0.4364 | 771.0 | 594.2 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -15.16 | 147.68 | 15.82 | 216.07 | 0.4488 | 696.0 | 547.4 | |
| 0.00 | 1.40 | 0.00 | 0.77 | -15.65 | 144.64 | 12.78 | 209.88 | 0.4292 | 935.0 | 710.6 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -13.22 | 144.50 | 12.63 | 212.76 | 0.3952 | -819.0 | -696.6 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -13.06 | 144.46 | 12.59 | 212.90 | 0.3927 | -894.0 | -702.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
