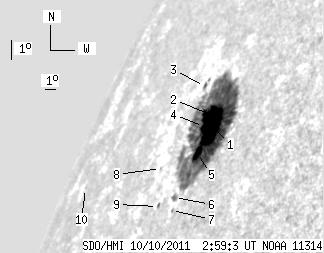

SDO HMI 2011-10-10 02:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.15 | 328.44 | 76.73 | 488.41 | 26.80 | 59.03 | -71.18 | 63.74 | 0.9435 | -555.1 | -128.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 02:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.53 | 319.33 | 57.90 | 473.17 | 26.96 | 59.22 | -70.99 | 63.56 | 0.9426 | -734.9 | -140.9 | |
| 2.54 | -1.00 | 3.85 | -1.00 | 27.28 | 58.50 | -71.71 | 63.25 | 0.9464 | 129.7 | 999999 | |
| 0.00 | 1.75 | 0.00 | 2.90 | 28.04 | 56.65 | -73.56 | 62.53 | 0.9554 | 127.0 | 148.1 | |
| 3.33 | -1.00 | 5.04 | -1.00 | 26.88 | 58.48 | -71.73 | 63.68 | 0.9464 | 107.7 | 999999 | |
| 6.75 | -1.00 | 9.94 | -1.00 | 26.05 | 59.09 | -71.12 | 64.53 | 0.9431 | -529.8 | 999999 | |
| 0.00 | 3.77 | 0.00 | 5.60 | 24.57 | 58.77 | -71.44 | 66.11 | 0.9444 | 417.0 | 347.9 | |
| 0.00 | 0.79 | 0.00 | 1.16 | 24.17 | 59.00 | -71.21 | 66.53 | 0.9431 | 218.0 | 206.9 | |
| 0.00 | 0.88 | 0.00 | 1.48 | 25.26 | 56.15 | -74.06 | 65.46 | 0.9573 | -141.0 | -84.7 | |
| 0.00 | 1.31 | 0.00 | 2.07 | 24.15 | 57.53 | -72.69 | 66.59 | 0.9507 | 23.0 | 55.9 | |
| 0.00 | 0.61 | 0.00 | 2.03 | 23.65 | 47.03 | -83.18 | 66.96 | 0.9891 | 205.0 | 151.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
