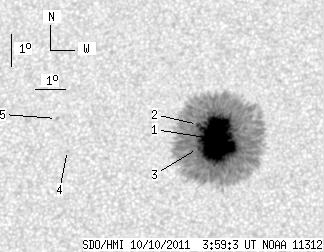

SDO HMI 2011-10-10 03:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.41 | 652.11 | 57.22 | 341.11 | 23.18 | 121.38 | -8.29 | 24.37 | 0.3225 | -1490.0 | -417.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 03:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.65 | 649.92 | 56.30 | 339.94 | 23.18 | 121.42 | -8.25 | 24.28 | 0.3222 | -1583.3 | -422.1 | |
| 1.23 | -1.00 | 0.64 | -1.00 | 23.64 | 120.73 | -8.94 | 25.36 | 0.3337 | -1027.6 | 999999 | |
| 0.53 | -1.00 | 0.28 | -1.00 | 22.89 | 120.78 | -8.89 | 26.32 | 0.3224 | -1229.2 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 22.74 | 116.49 | -13.18 | 36.26 | 0.3571 | 844.0 | 704.3 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 23.73 | 116.02 | -13.65 | 35.45 | 0.3741 | 795.0 | 608.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
