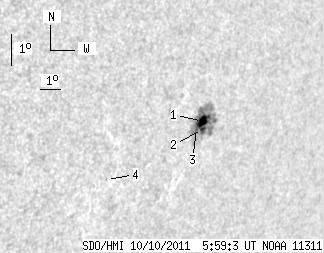

SDO HMI 2011-10-10 05:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.17 | 64.79 | 8.70 | 55.39 | -11.16 | 180.51 | 51.94 | 251.52 | 0.8166 | 668.1 | 270.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 05:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.45 | 64.00 | 6.37 | 54.77 | -11.08 | 180.57 | 52.00 | 251.64 | 0.8170 | 867.5 | 280.2 | |
| 1.67 | -1.00 | 1.43 | -1.00 | -11.33 | 180.64 | 52.07 | 251.37 | 0.8183 | 584.7 | 999999 | |
| 1.05 | -1.00 | 0.90 | -1.00 | -11.31 | 180.33 | 51.76 | 251.29 | 0.8153 | 748.1 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.62 | -12.53 | 176.35 | 47.78 | 248.35 | 0.7801 | -555.0 | -452.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
