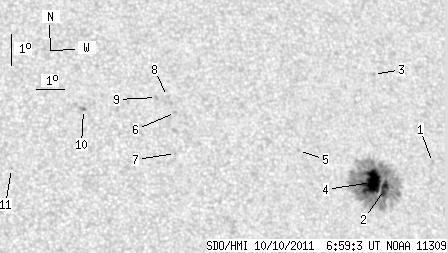

SDO HMI 2011-10-10 06:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.13 | 192.34 | 21.99 | 110.71 | 23.41 | 154.28 | 26.26 | 307.10 | 0.5109 | -716.0 | -324.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 06:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.84 | 0.00 | 1.09 | 23.84 | 156.92 | 28.90 | 305.48 | 0.5449 | -497.0 | -386.0 | |
| 9.20 | 179.01 | 5.32 | 103.22 | 23.08 | 154.97 | 26.95 | 305.82 | 0.5162 | -949.8 | -390.3 | |
| 0.00 | 1.23 | 0.00 | 0.73 | 26.72 | 155.43 | 27.41 | 311.28 | 0.5493 | -582.0 | -538.8 | |
| 28.93 | -2.00 | 16.67 | -2.00 | 23.32 | 154.55 | 26.53 | 306.60 | 0.5129 | -1290.3 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 24.44 | 152.13 | 24.11 | 310.82 | 0.4934 | 581.0 | 460.6 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 25.81 | 148.00 | 19.98 | 317.95 | 0.4612 | 848.0 | 723.5 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 24.51 | 147.78 | 19.76 | 316.10 | 0.4455 | 792.0 | 657.5 | |
| 0.00 | 1.49 | 0.00 | 0.83 | 26.33 | 147.81 | 19.79 | 319.03 | 0.4647 | 622.0 | 555.7 | |
| 0.00 | 1.75 | 0.00 | 0.98 | 26.31 | 147.42 | 19.39 | 319.53 | 0.4605 | 797.0 | 638.7 | |
| 0.00 | 2.81 | 0.00 | 1.54 | 26.01 | 144.80 | 16.78 | 322.86 | 0.4316 | 1076.0 | 795.5 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 24.21 | 142.10 | 14.08 | 324.56 | 0.3843 | 736.0 | 562.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
